Pond Aeration Systems: Fine-Bubble Aeration for Higher Stocking Density

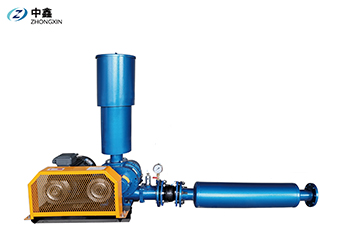

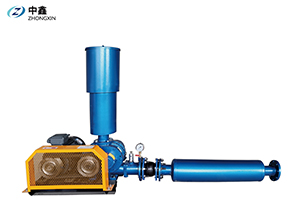

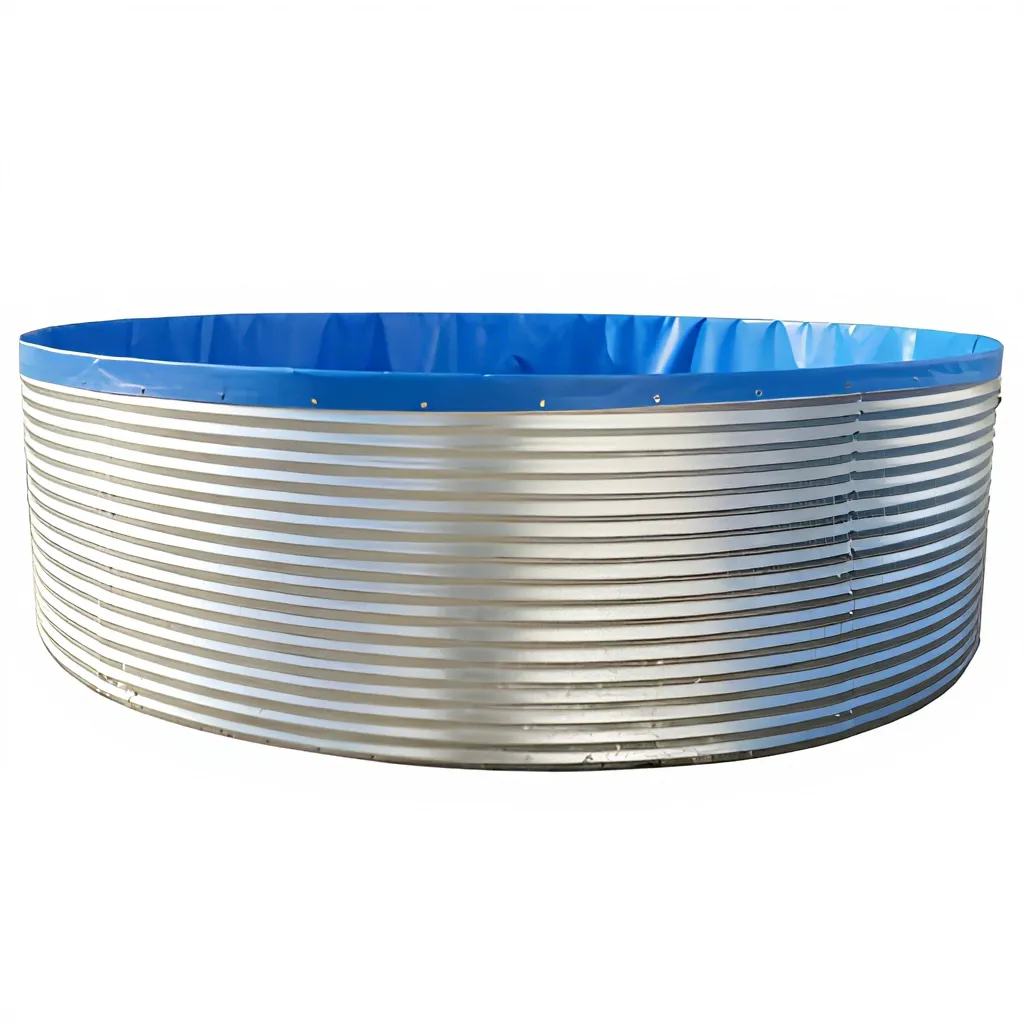

Fine-bubble pond aeration systems — roots blowers, microporous aeration tubes and discs, and galvanized canvas ponds, one supplier from the blower room to the pond bottom.
Rated by aquaculture farms worldwide
The ZXMSR blower has run two full seasons without a single stop, and the factory layout support was excellent.
We switched eight ponds to microporous tubing — electricity dropped by about a third and the crop grew through the hot season.
One supplier, one complete aeration system
Every pond aeration system component — from the blower on shore to the last fitting at the pond bottom — matched, tested and shipped as a set.
Accessories & installation styles we can supply
Every part between the blower and the pond bottom — supplied, matched and shipped as a set.
Fountain aerator

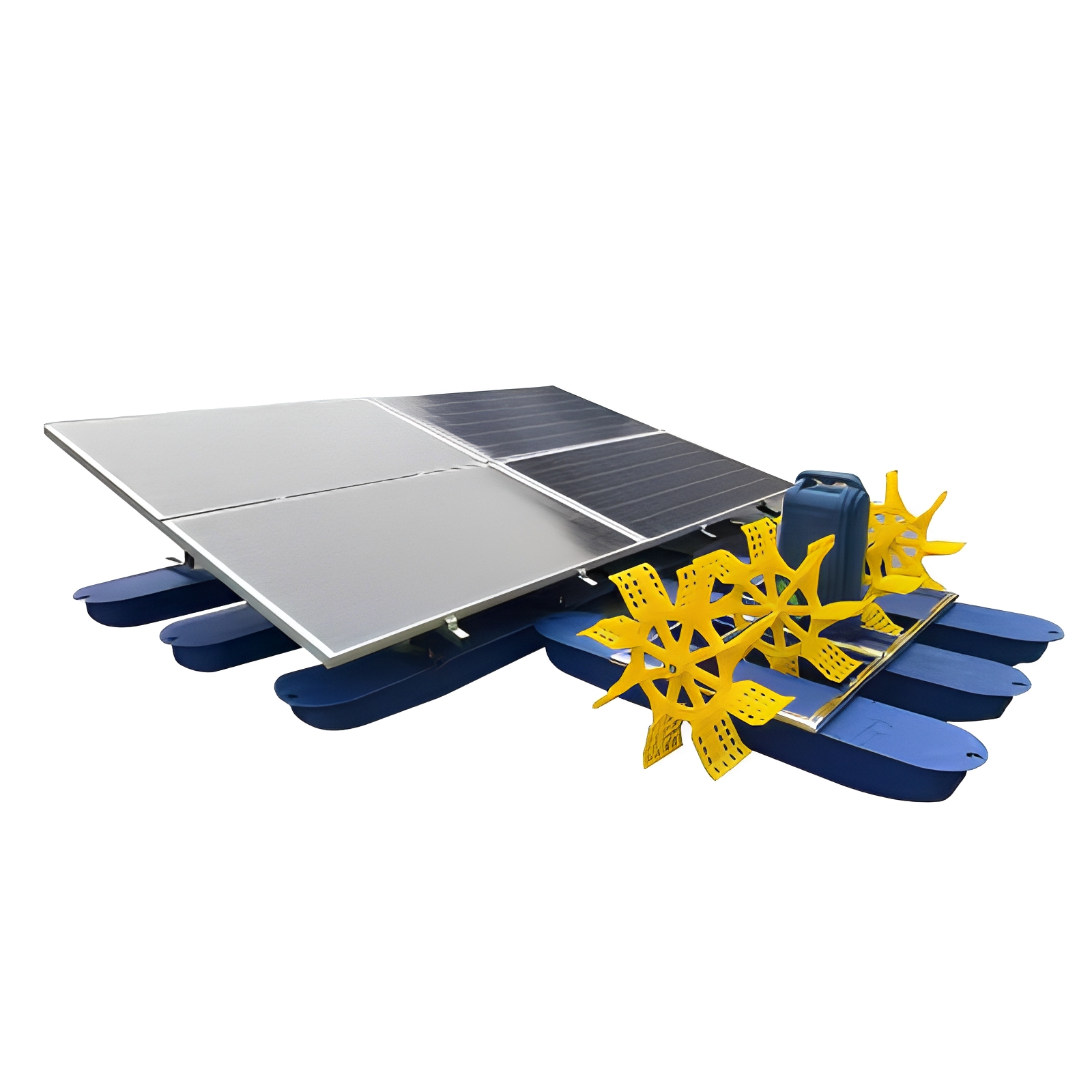

Solar aerator

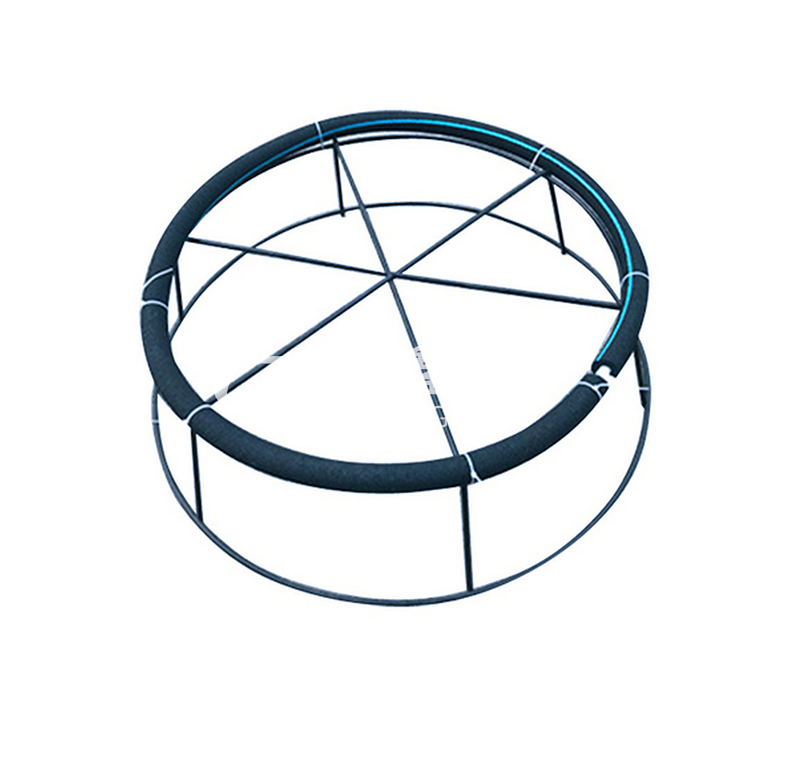

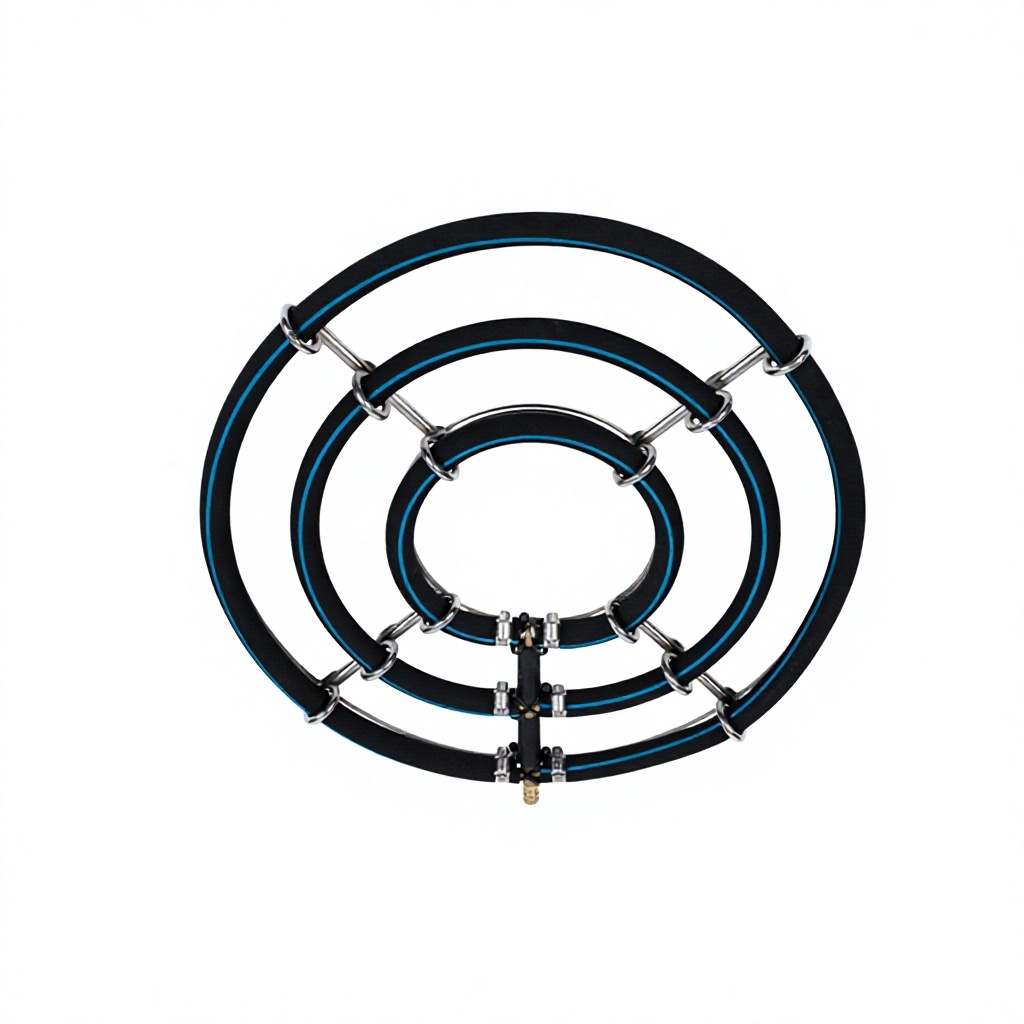

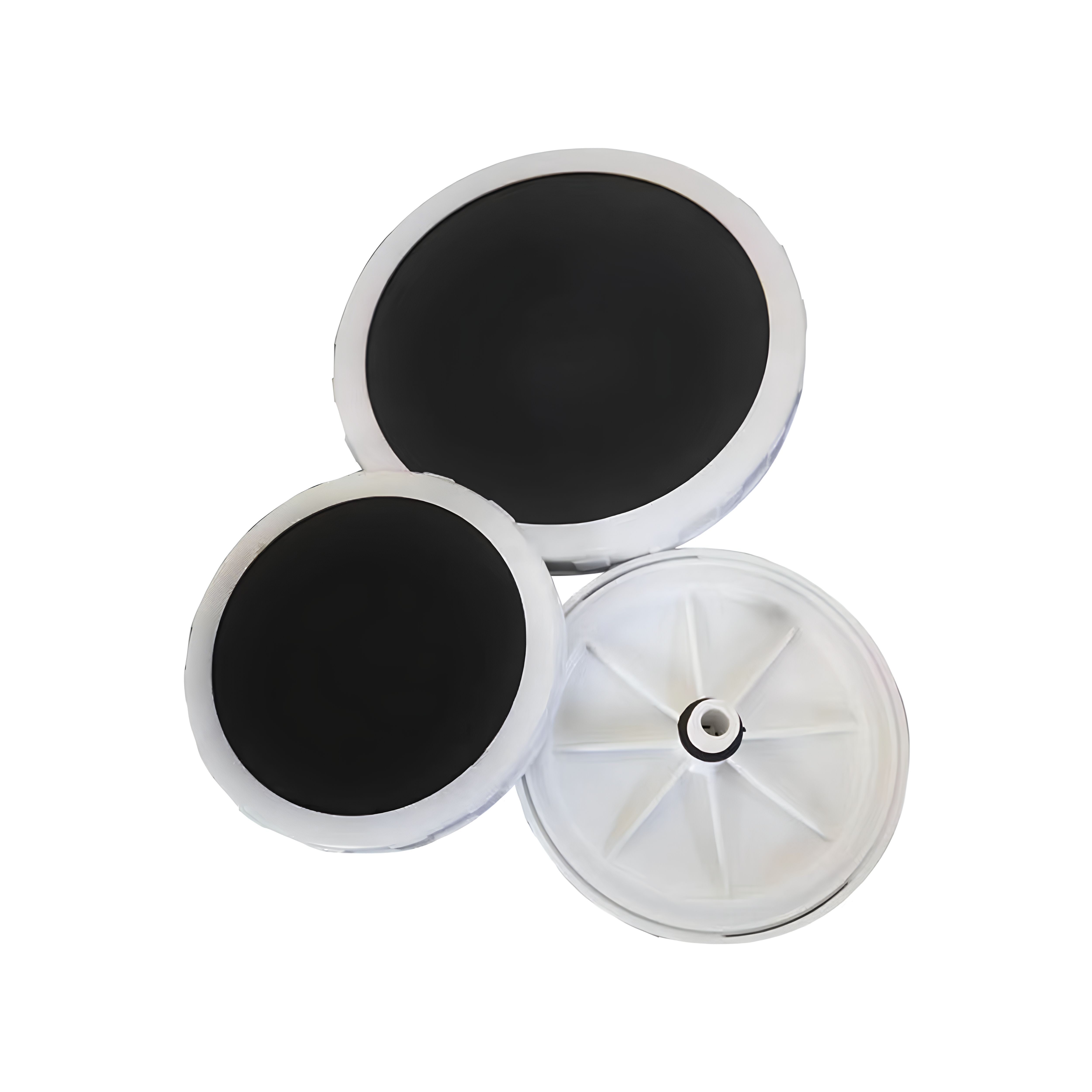

Aeration disc
Stainless steel aeration disc
Ceramic aeration disc

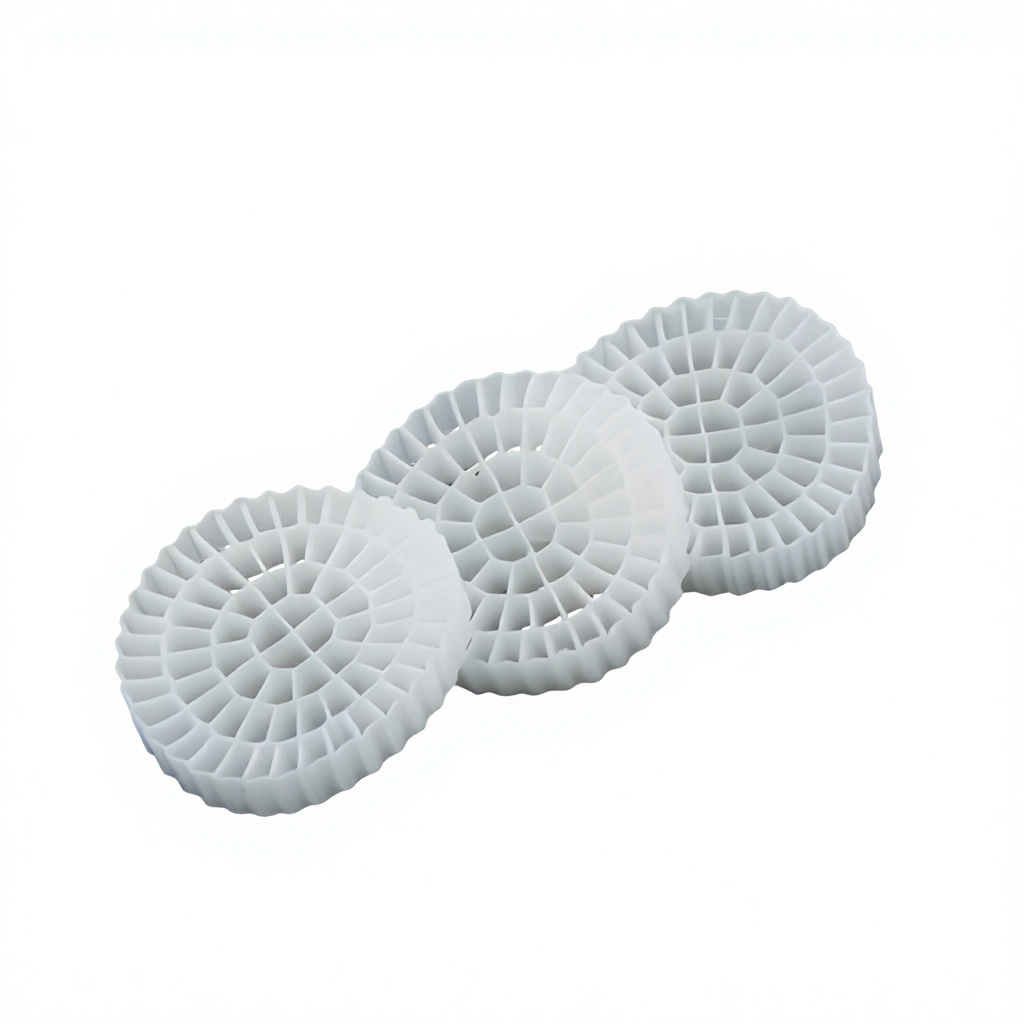

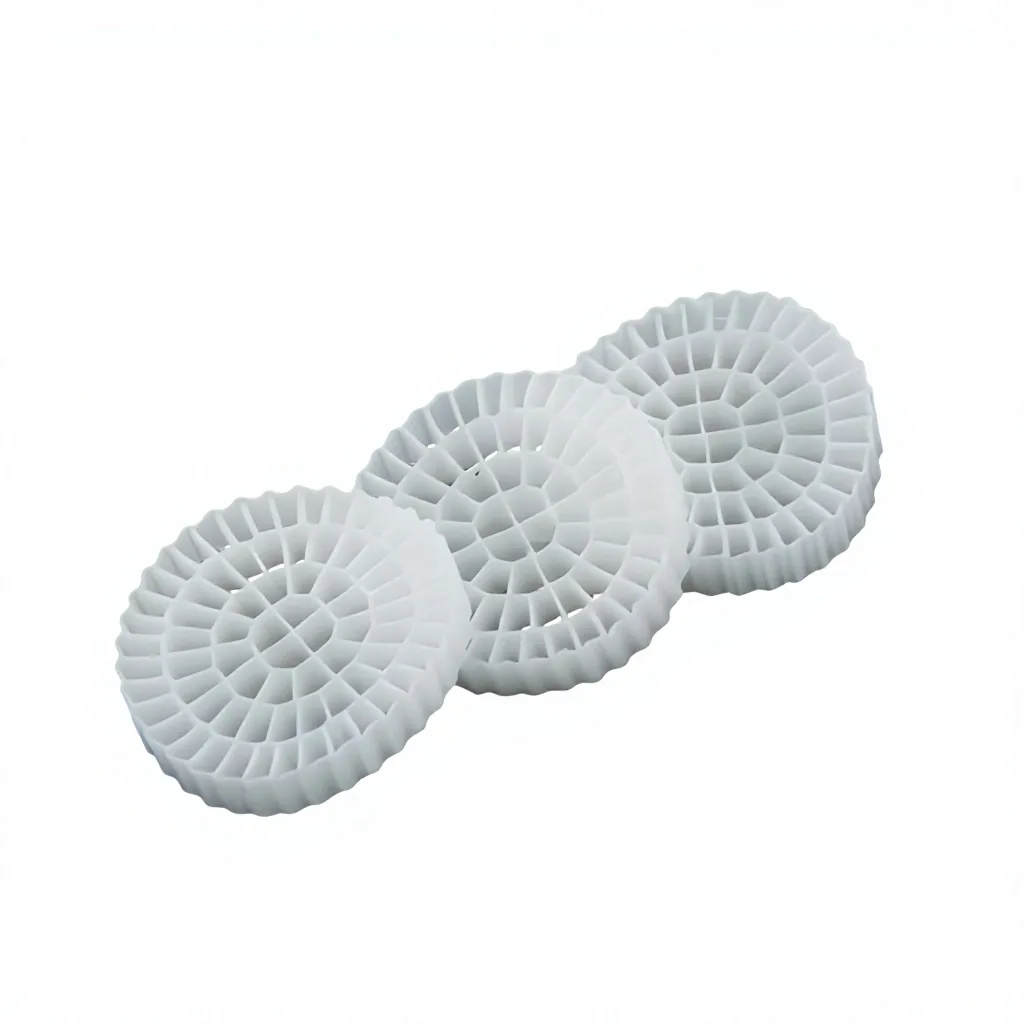

MBBR filler
Built for the way you farm
Four common buyer scenarios — each with a proven blower + microporous layout.
Products in action
Short clips from real farms and installations — click to play, nothing loads until you do.
Aeration discs in a pond

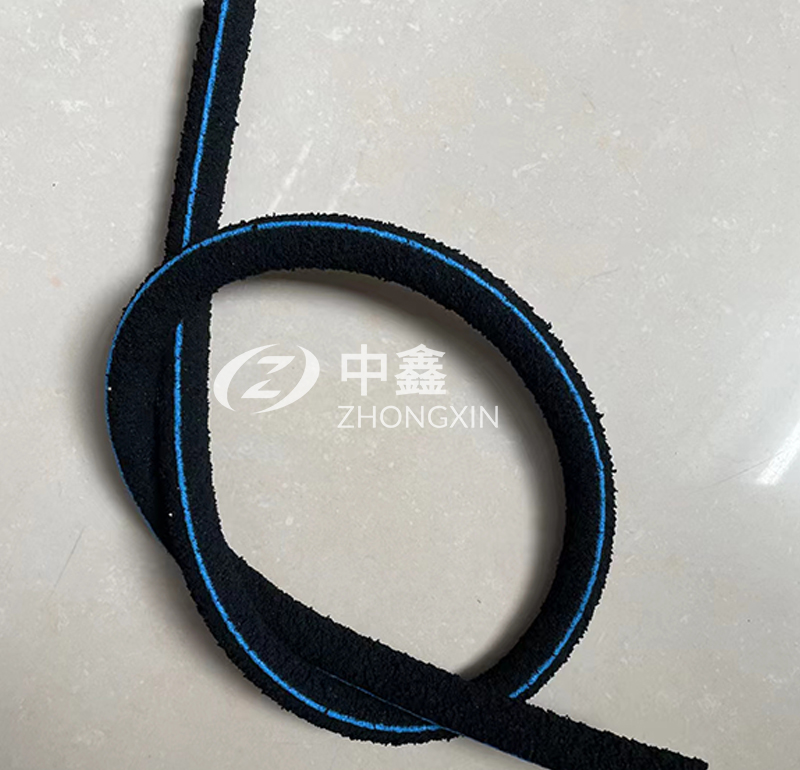

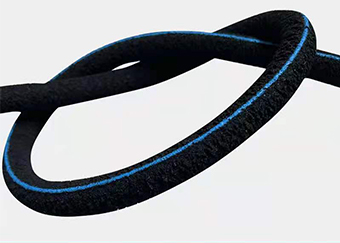

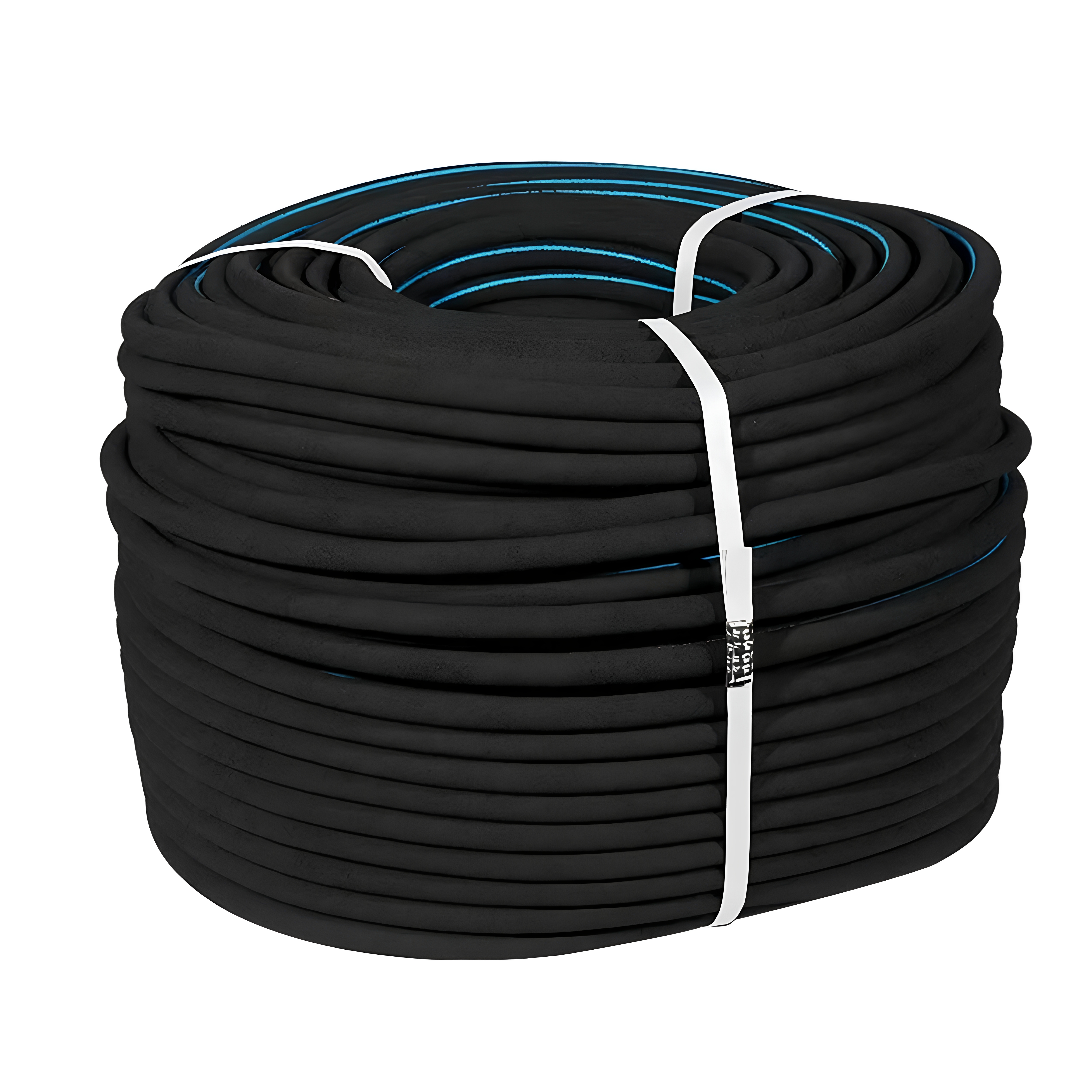

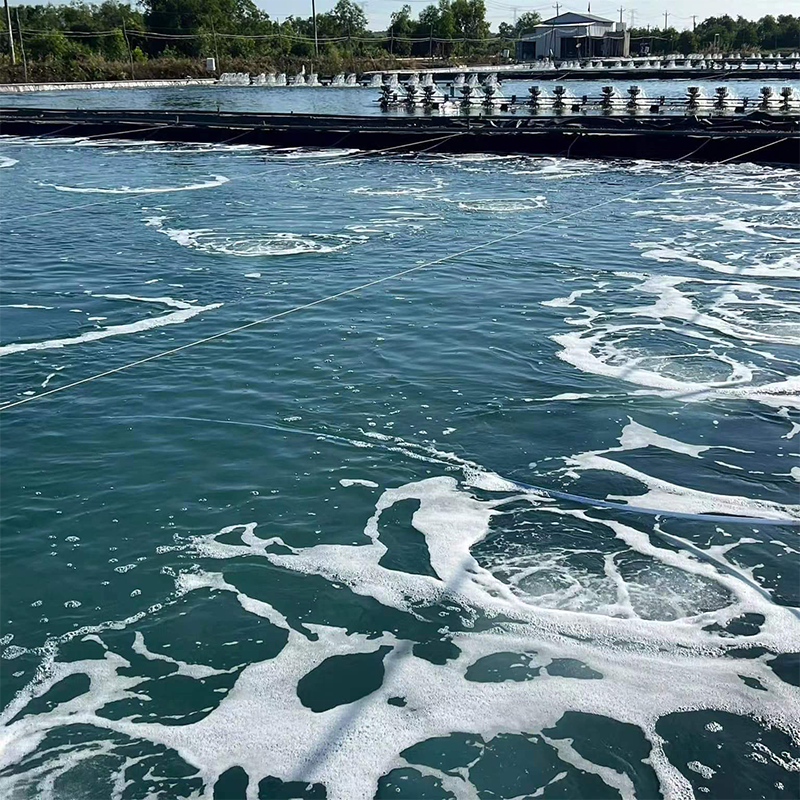

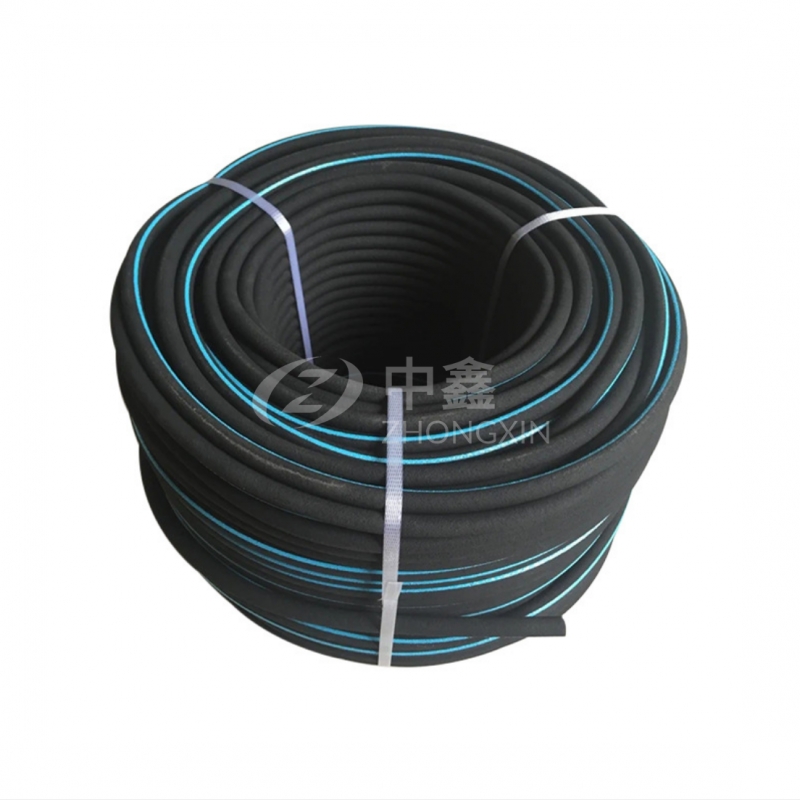

Microporous tube bubbles

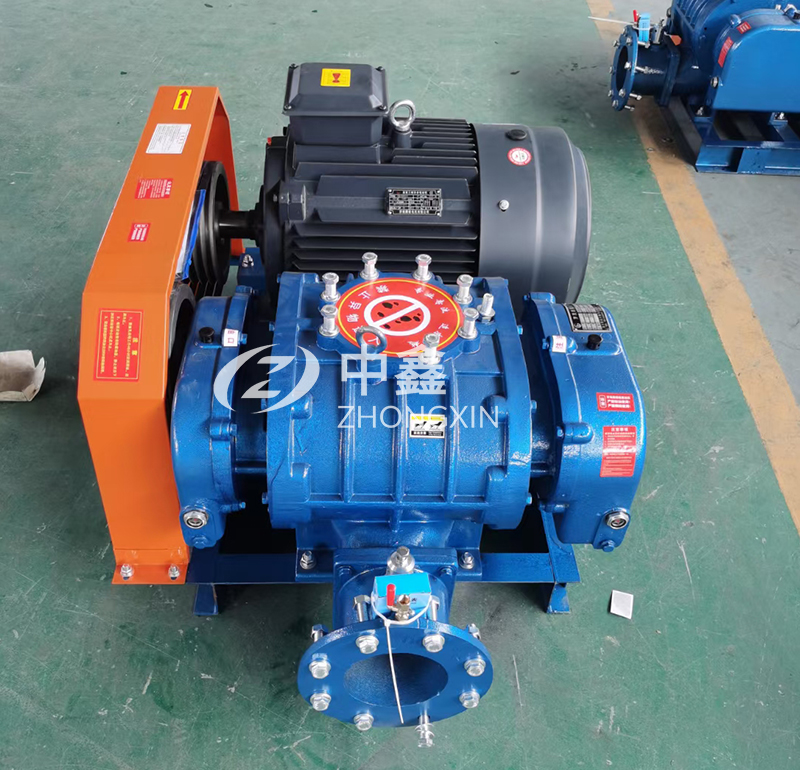

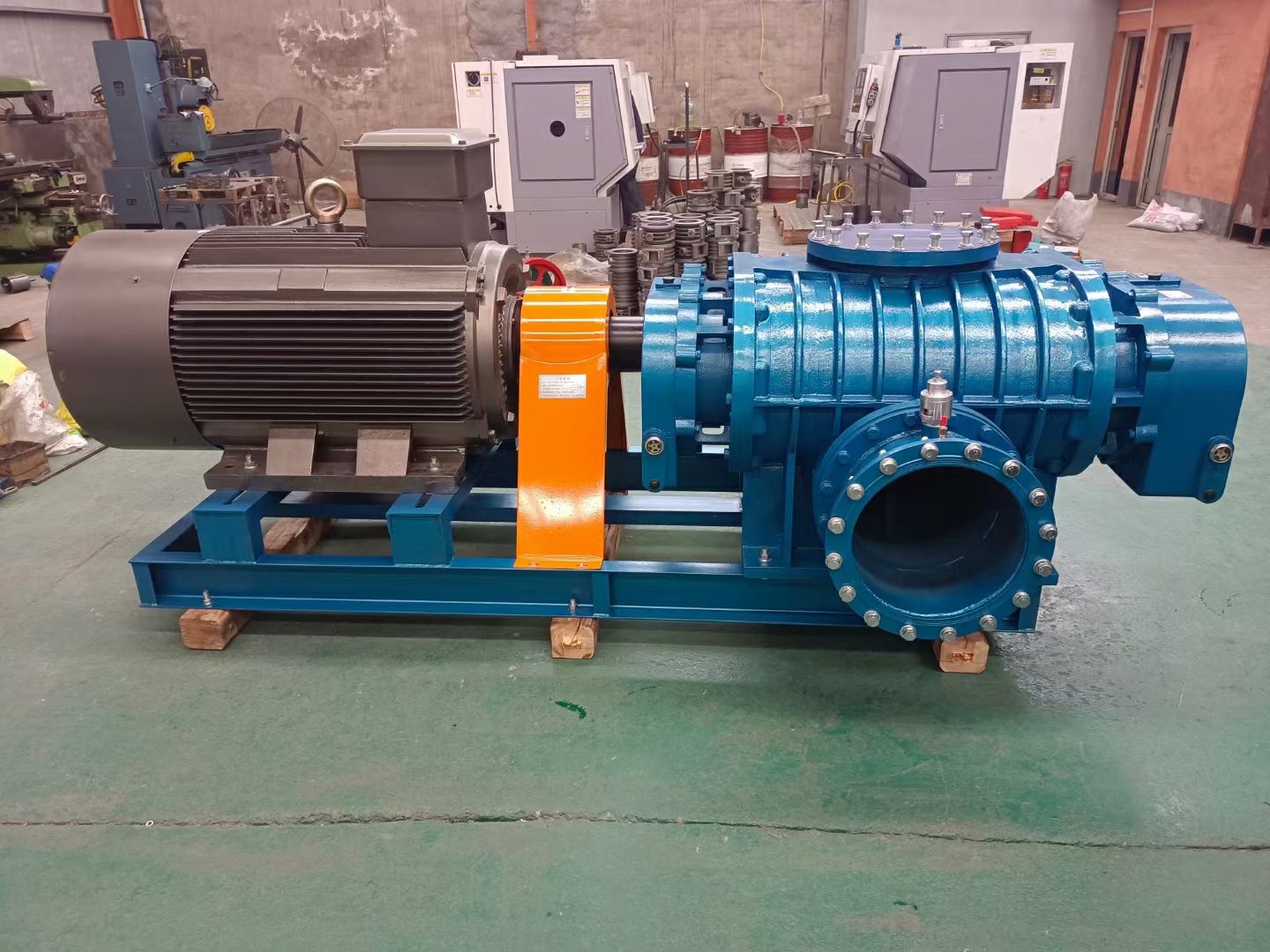

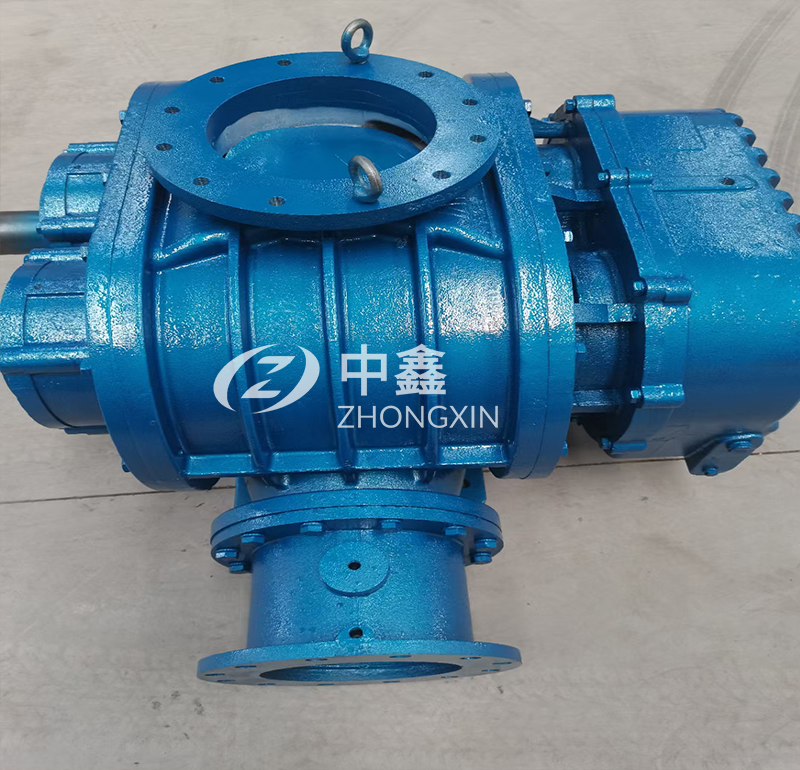

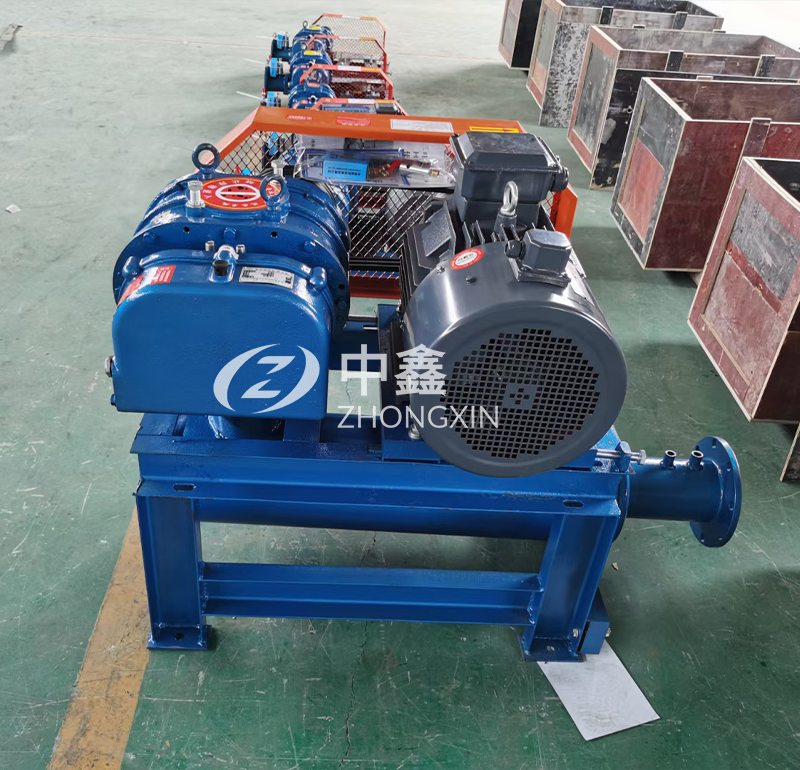

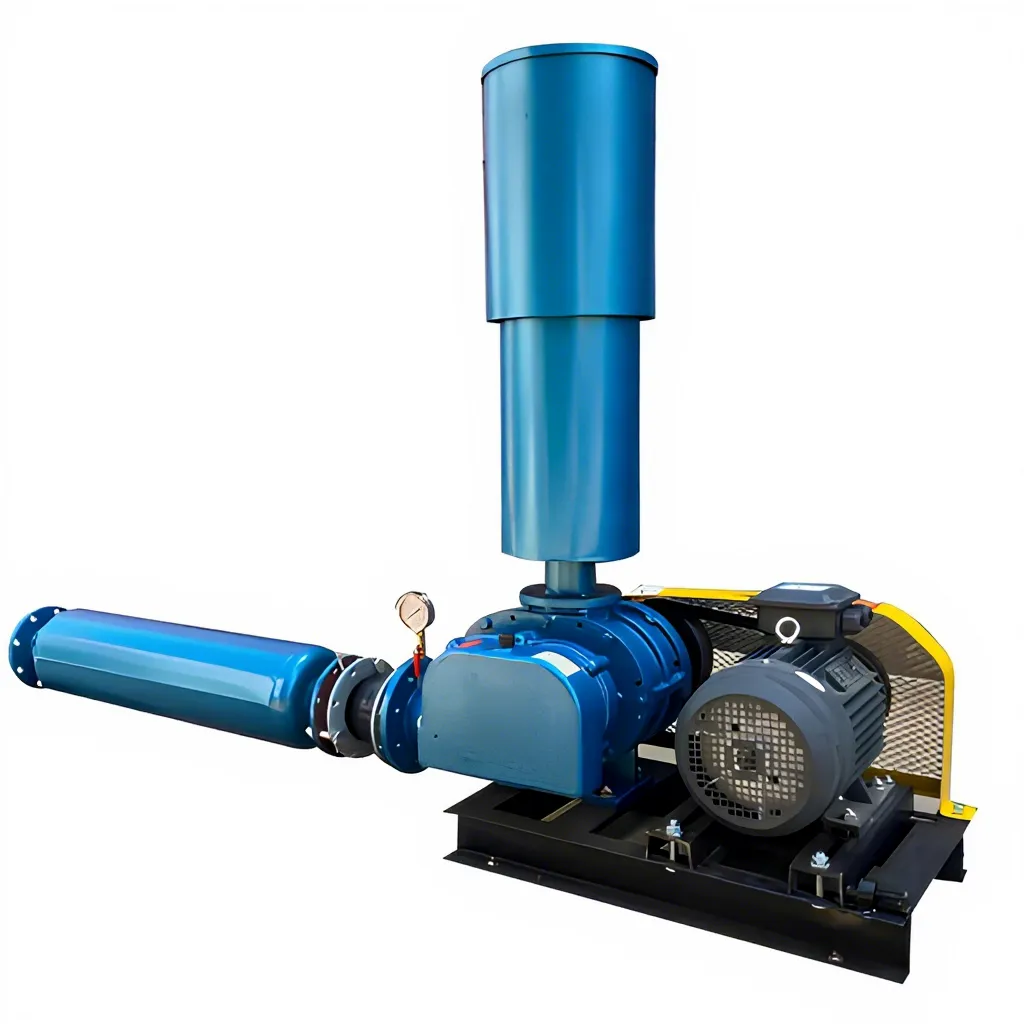

Roots blower running

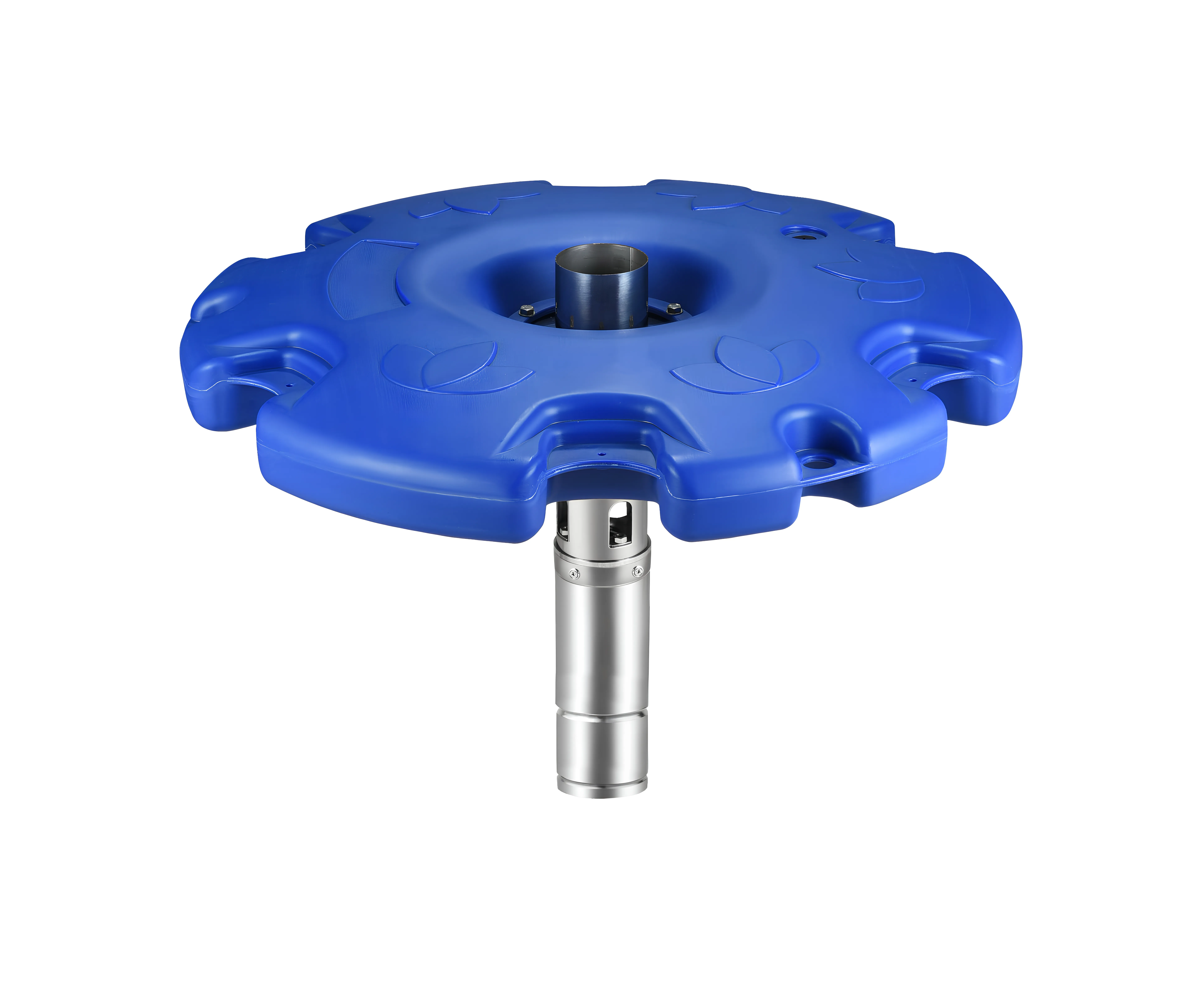

Variable frequency aerator

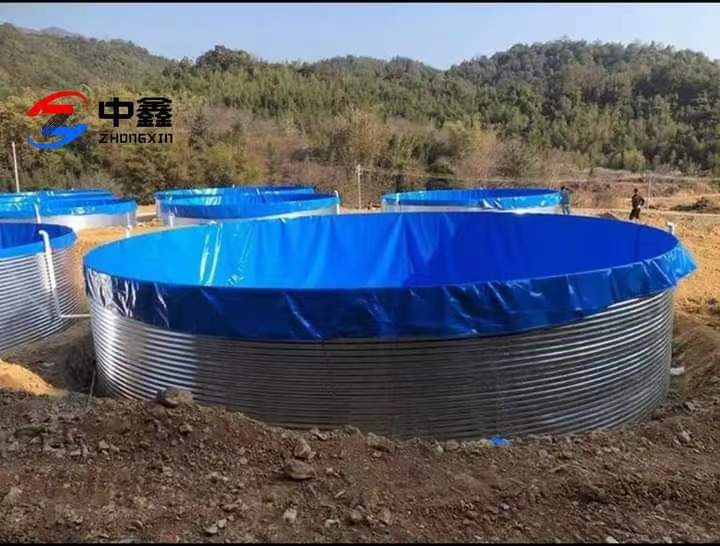

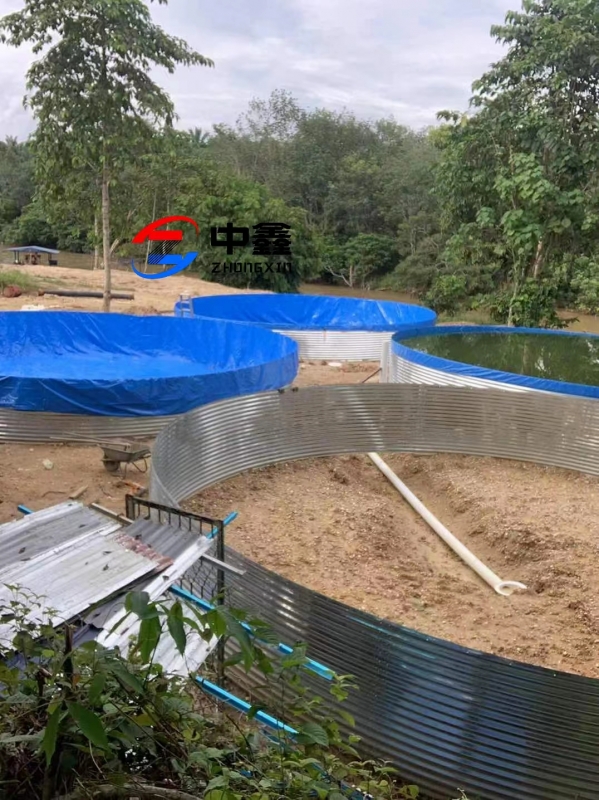

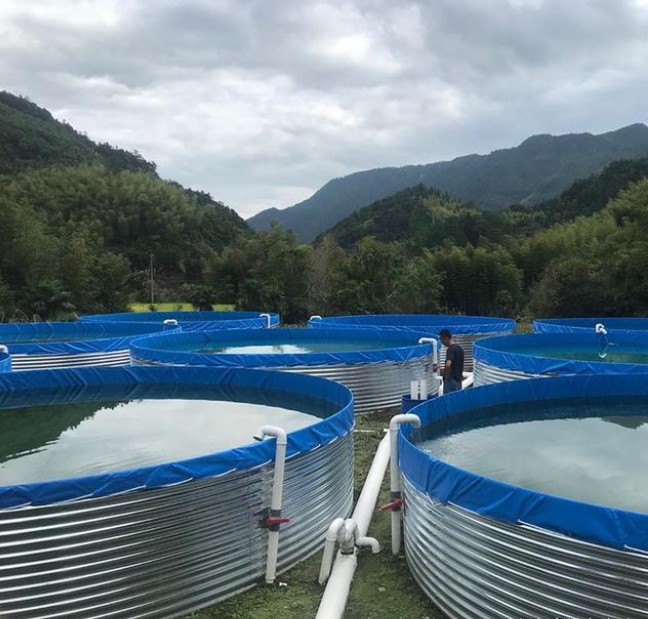

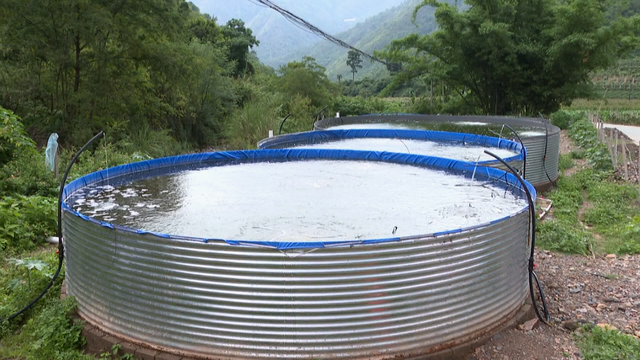

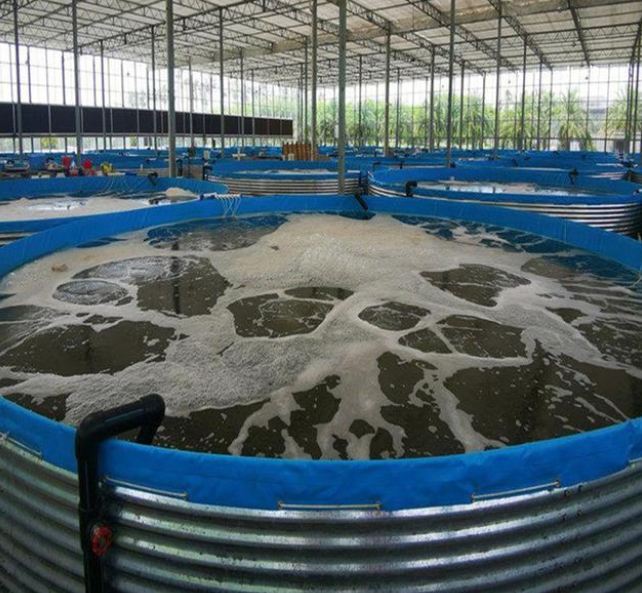

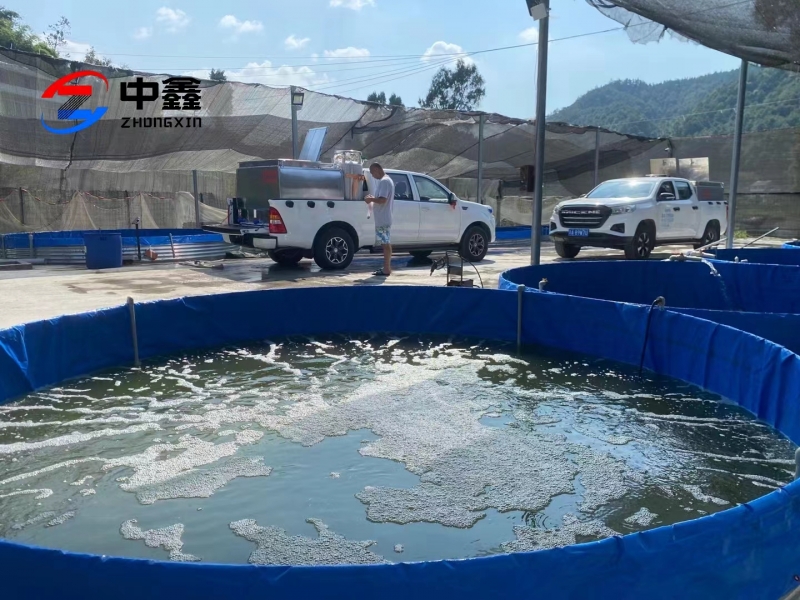

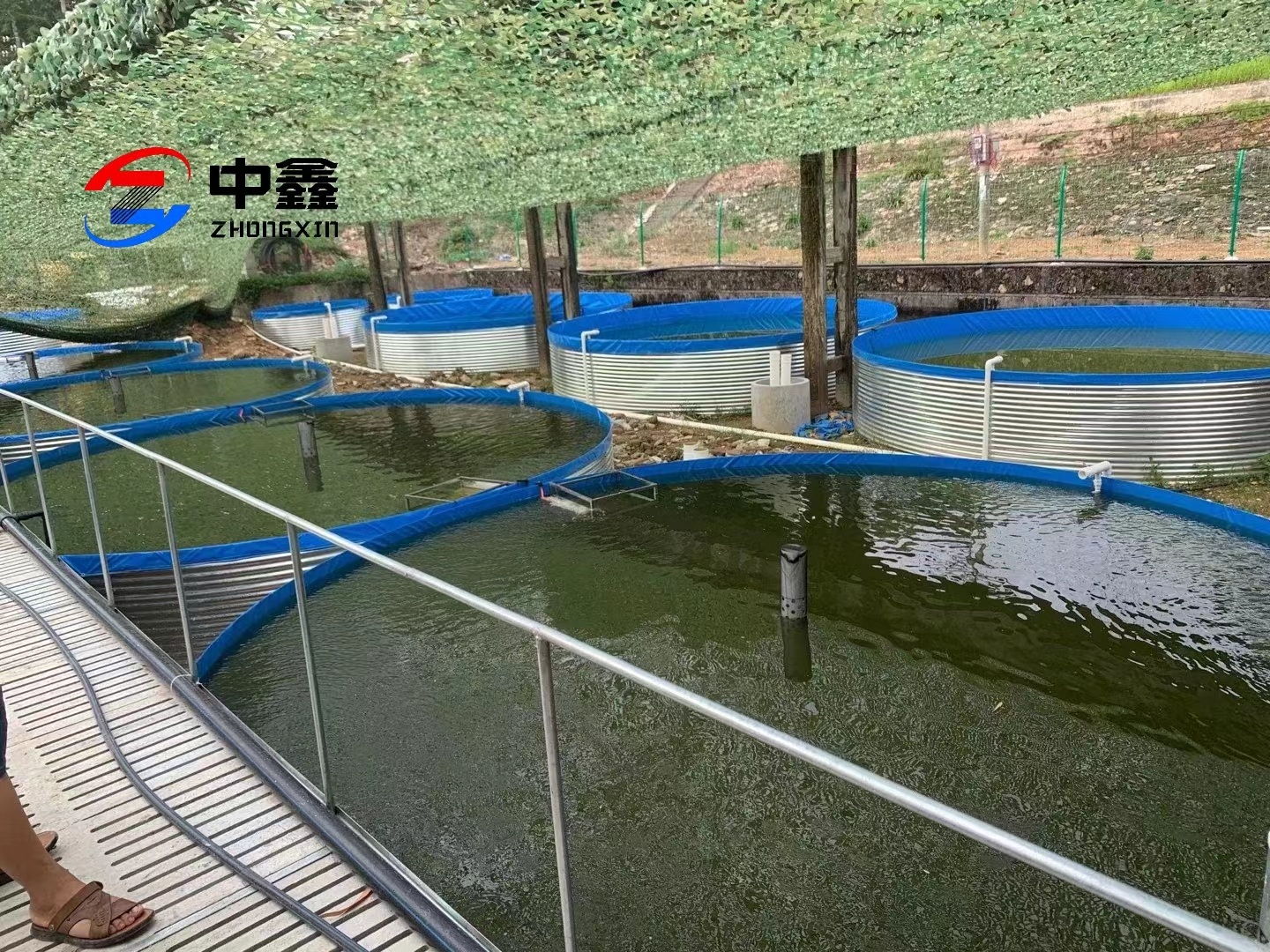

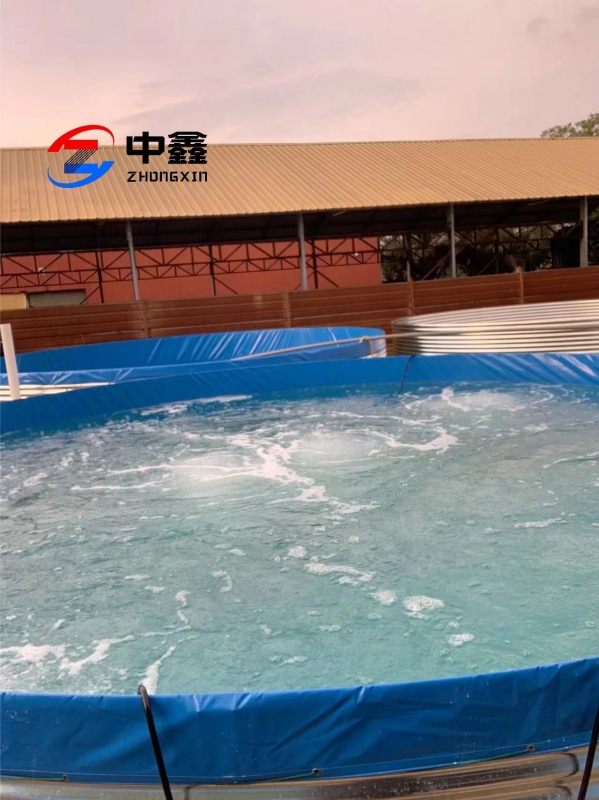

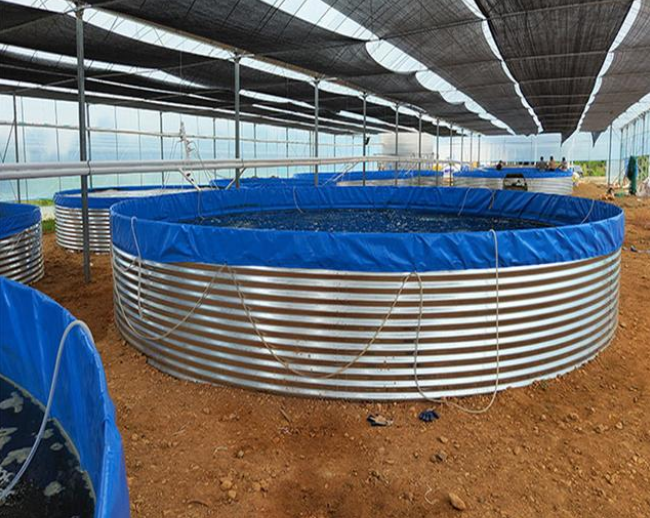

Canvas pond farming
Solar powered waterwheel operation
From our farm-side engineers
Pond aeration systems: common questions
How do I choose a pond aeration system?

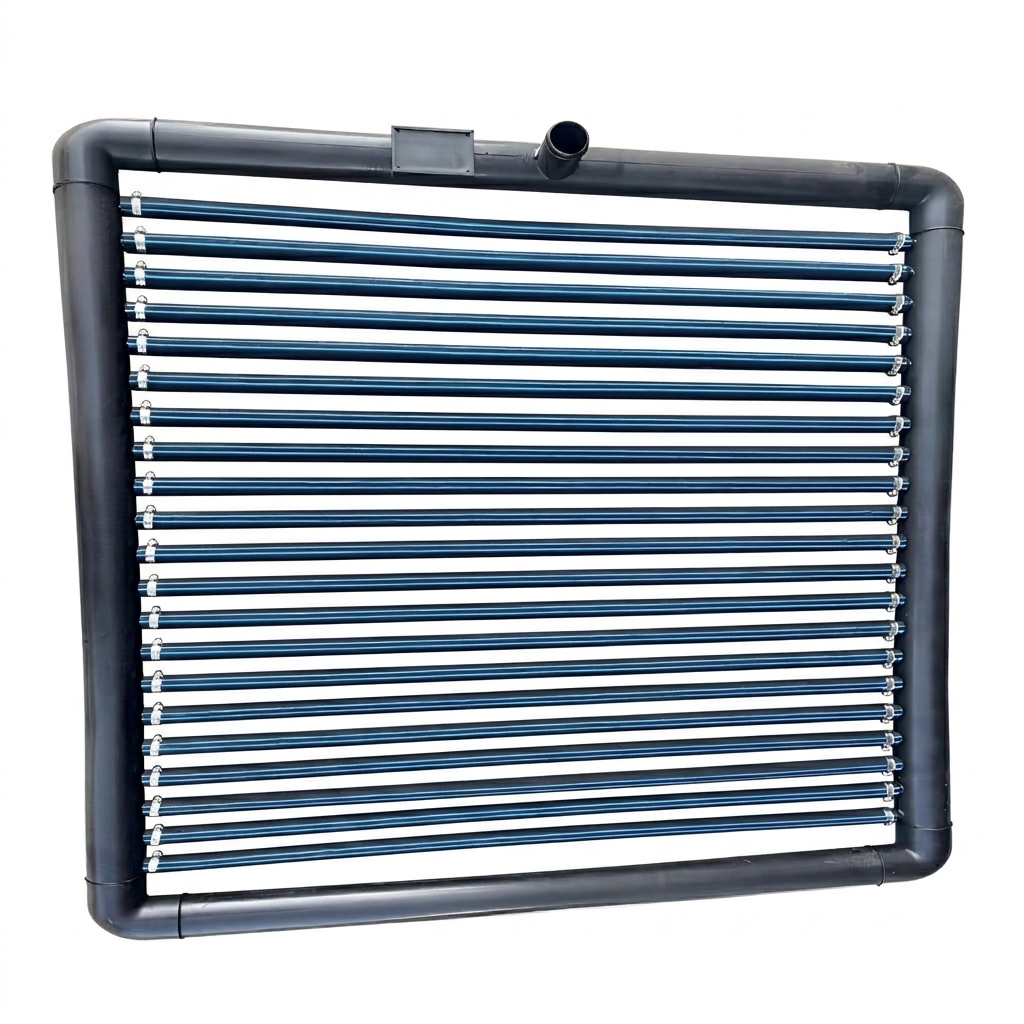

Start with pond area and depth. For ponds 1-2 m deep, microporous tubing laid 10-20 cm above the bottom with runs 3-5 m apart is the baseline; size the blower from the tubing length, not from habit. Send us area, depth and stocking density and we return a sizing sheet with the blower kW, tubing length and valve layout.
What size aerator does my pond need?
A working figure for microporous bottom aeration is about 0.15 kW per mu (667 m²), which lands near 1 kW of blower per 100-150 m of tubing. Size up for hot weather or high density, and measure dissolved oxygen at 5-6 AM — the daily low is what decides whether the stocking density holds.
Can a pond aeration system run off-grid?
Yes. The same blowers and pond aerators run on solar and battery supply, sized at roughly 1 kW of panel per kW of blower; 4-8 hours of running on solar alone is typical, with the battery covering the pre-dawn hours when oxygen is lowest.
Do you supply the complete system or individual parts?
The complete set from one factory: roots blowers, microporous tubing and discs, floating aerators and control panels, matched as one design and shipped together on FOB or CIF terms. Spare parts and single components are available as well.
Get a free system design
Tell us your pond size, species and water depth — our engineers will reply with a blower and aeration layout recommendation within 24 hours.
