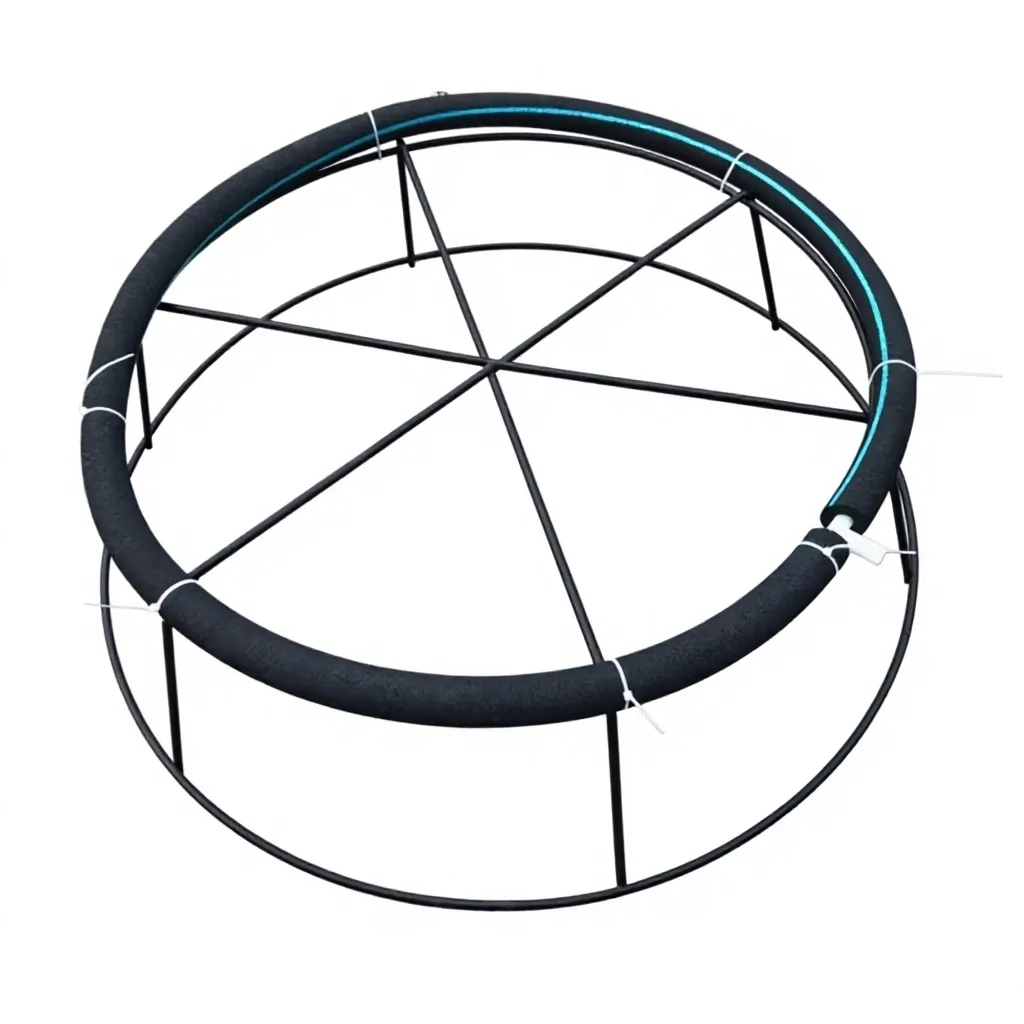

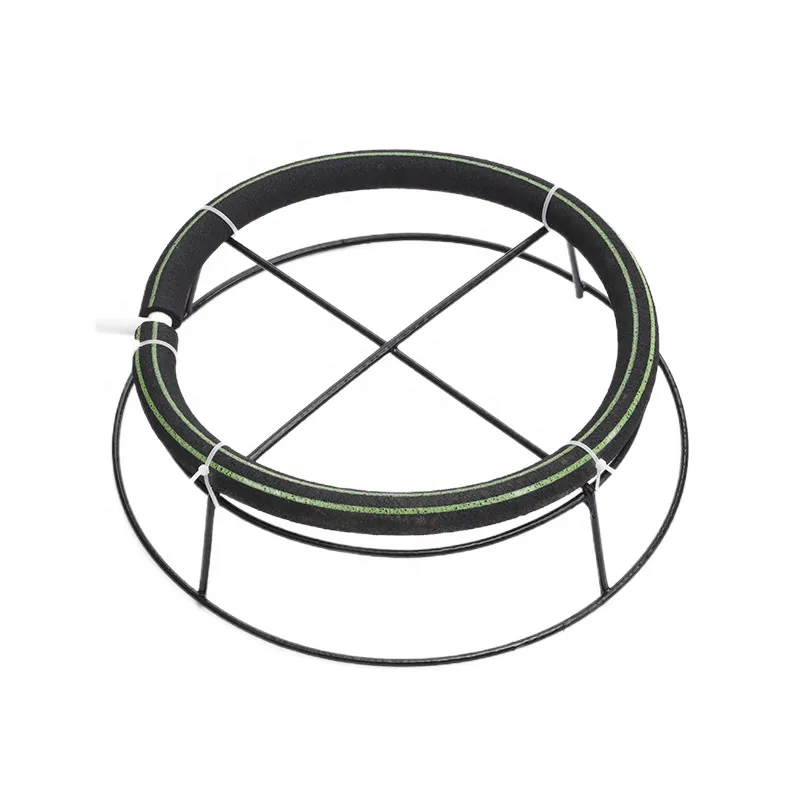

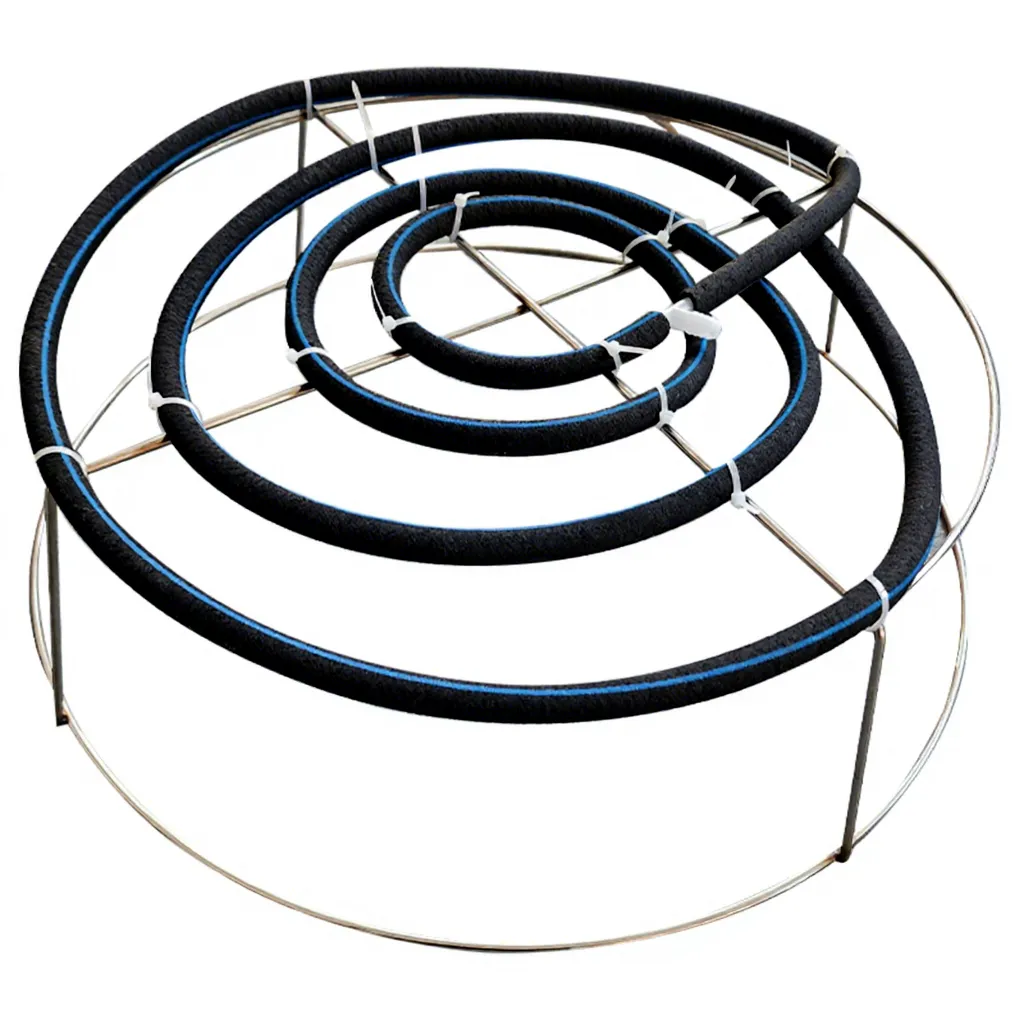

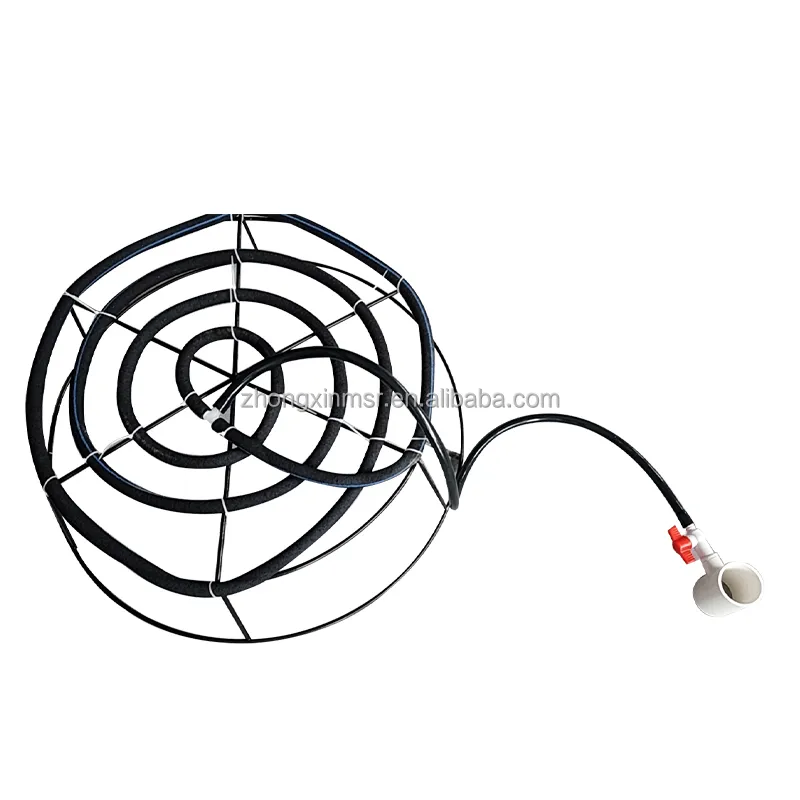

Microporous Aeration Disc
A nano microporous aeration disc that releases a smoke-like cloud of fine 0.3–2 mm bubbles — oxygenating the bottom layer instead of just the surface.
Features
- Bubbles of 0.3–2 mm (freshwater) / 0.5–3 mm (seawater) — far finer than air stones, much larger gas-liquid contact surface
- Oxygenates the anoxic bottom layer and spreads air evenly through every water layer
- Bottom toxic gases (ammonia nitrogen, nitrite, hydrogen sulfide) are oxidized and driven off
- Near-silent operation — no noise stress on fish
- Easy to install; pores self-seal under water pressure when the blower stops, preventing blockage

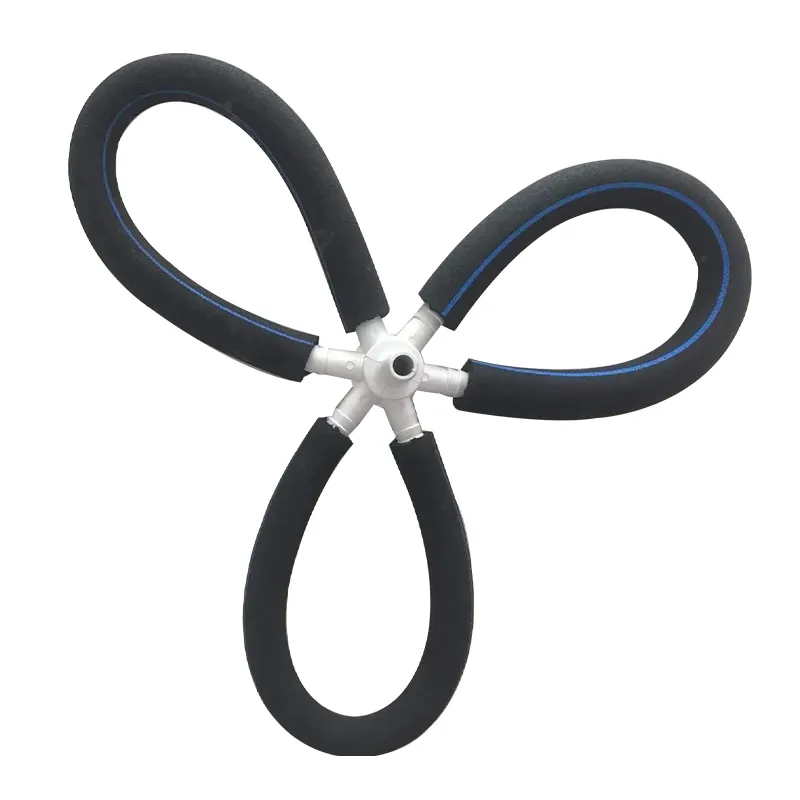

- Tube shape can be changed freely; matching plastic pipe connectors supplied
Technical parameters
Specifications
| Bubble diameter | 0.3–2 mm (freshwater) / 0.5–3 mm (seawater) |
|---|---|

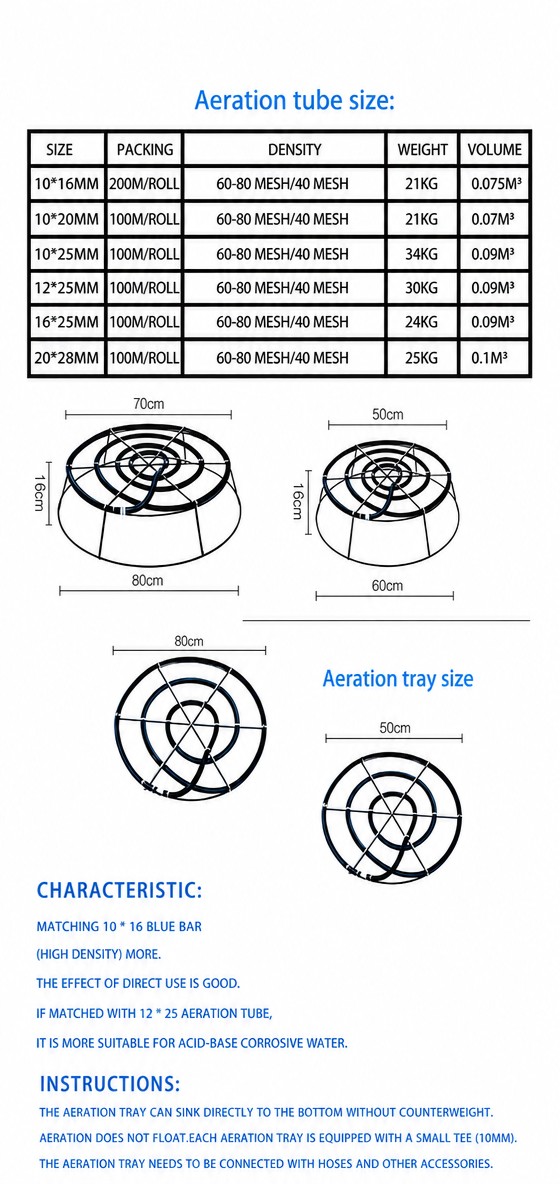

| Disc diameter | 30–100 cm (customizable) |
| Serving area | ≈ 10 m² per disc |
| Matching blowers | ZXMSR80 / ZXMSR100 / ZXMSR125 |
| Supply pressure | 0.05–0.10 MPa |
| Water depth | 0–5 m |
| Clog protection | Self-sealing pores when not aerating |
| Installation | Disc or tube forms, shore-mounted blower |
Get pricing for Microporous Aeration Disc
Request a quotation with specifications, packaging and lead time — reply within 24 hours.
