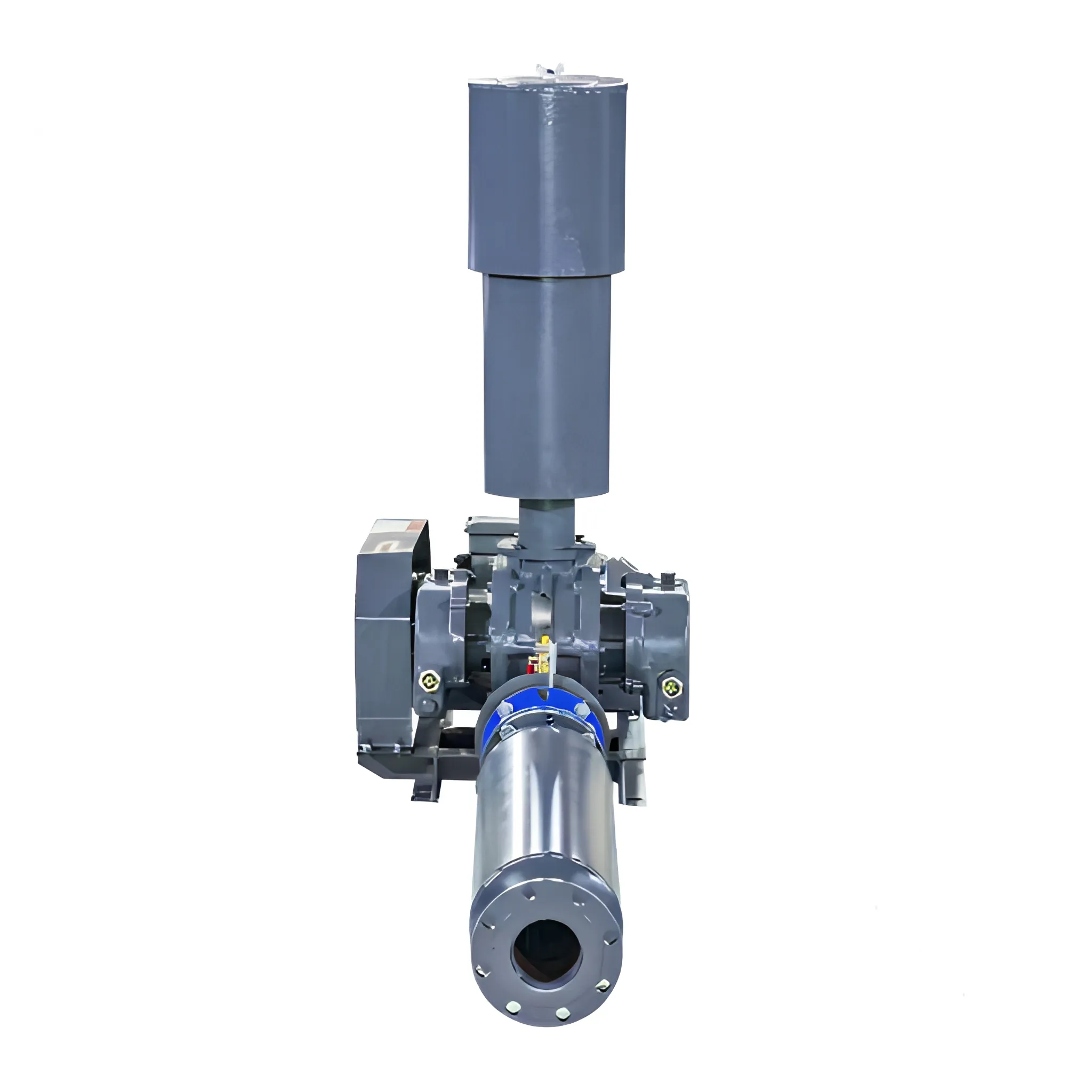

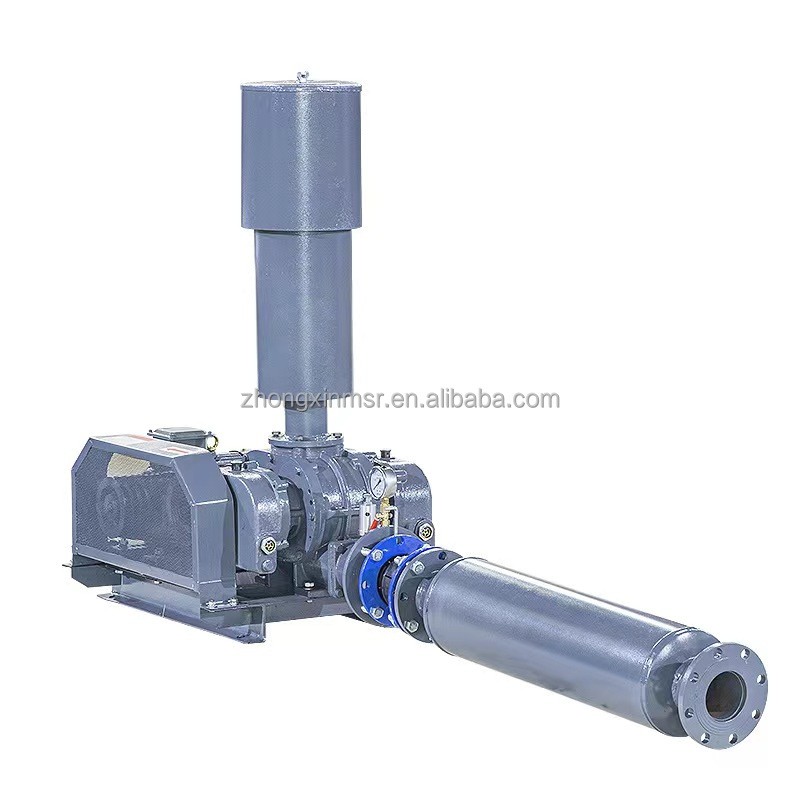

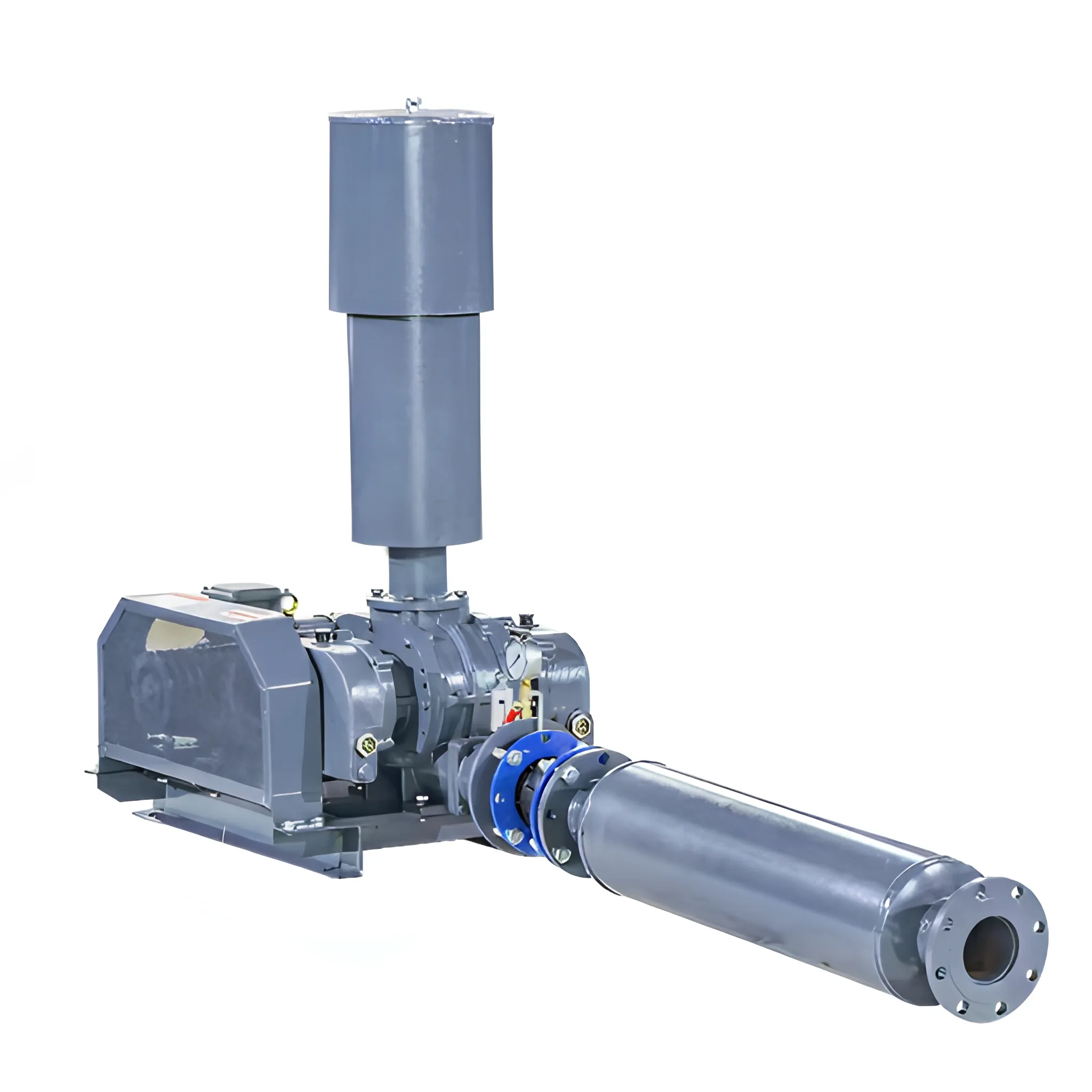

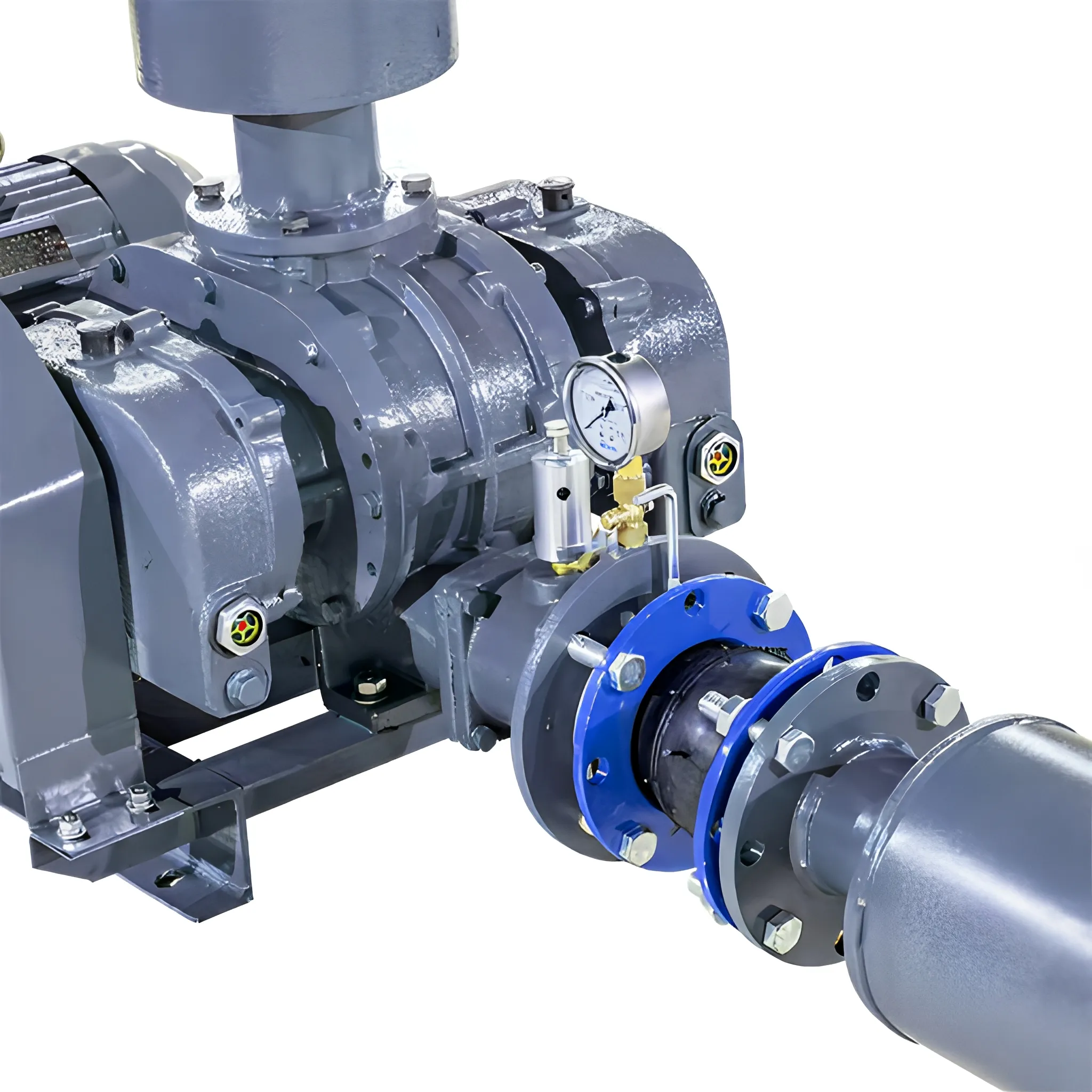

Three-Blade Roots Fan

A three-lobe positive-displacement Roots blower for aquaculture aeration, sewage aeration and pneumatic conveying. The rotors never touch, so the gas path stays oil-free and the discharge clean.

Features

Two three-lobed rotors rotate in opposite directions with tightly controlled clearance — no metal-to-metal contact, no lubricant in the gas path
Integral impeller-and-shaft design: impeller does not wear, performance stays constant over long continuous runs
Low gas pulsation, low vibration and low noise
Reliable shaft seals — no oil leakage, clean gas output
Compact structure, high speed, high efficiency
Can also be operated as a vacuum pump

Request a Quote

Technical parameters

Specifications

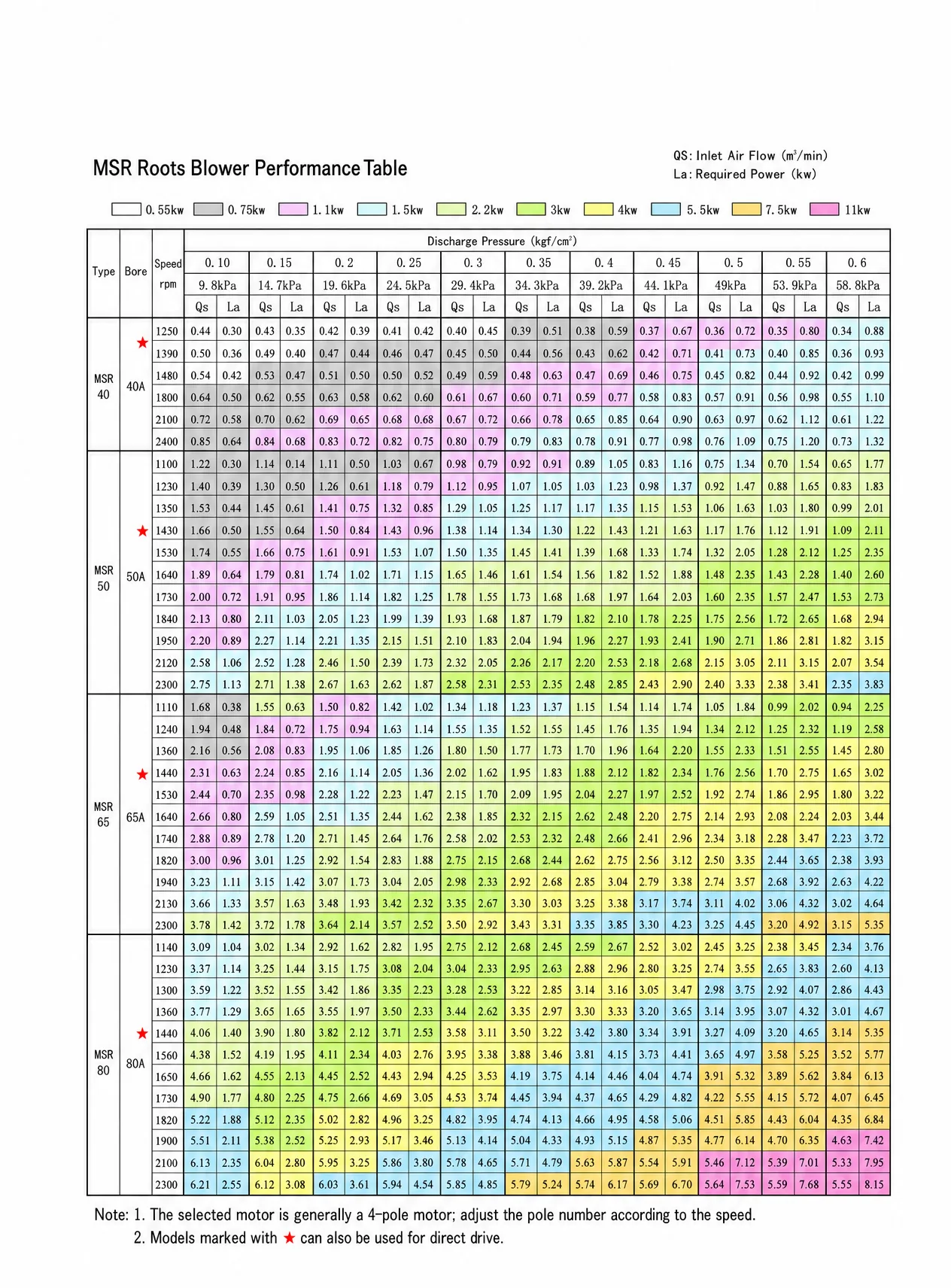

MSR series Roots blower performance table — models 40 to 80

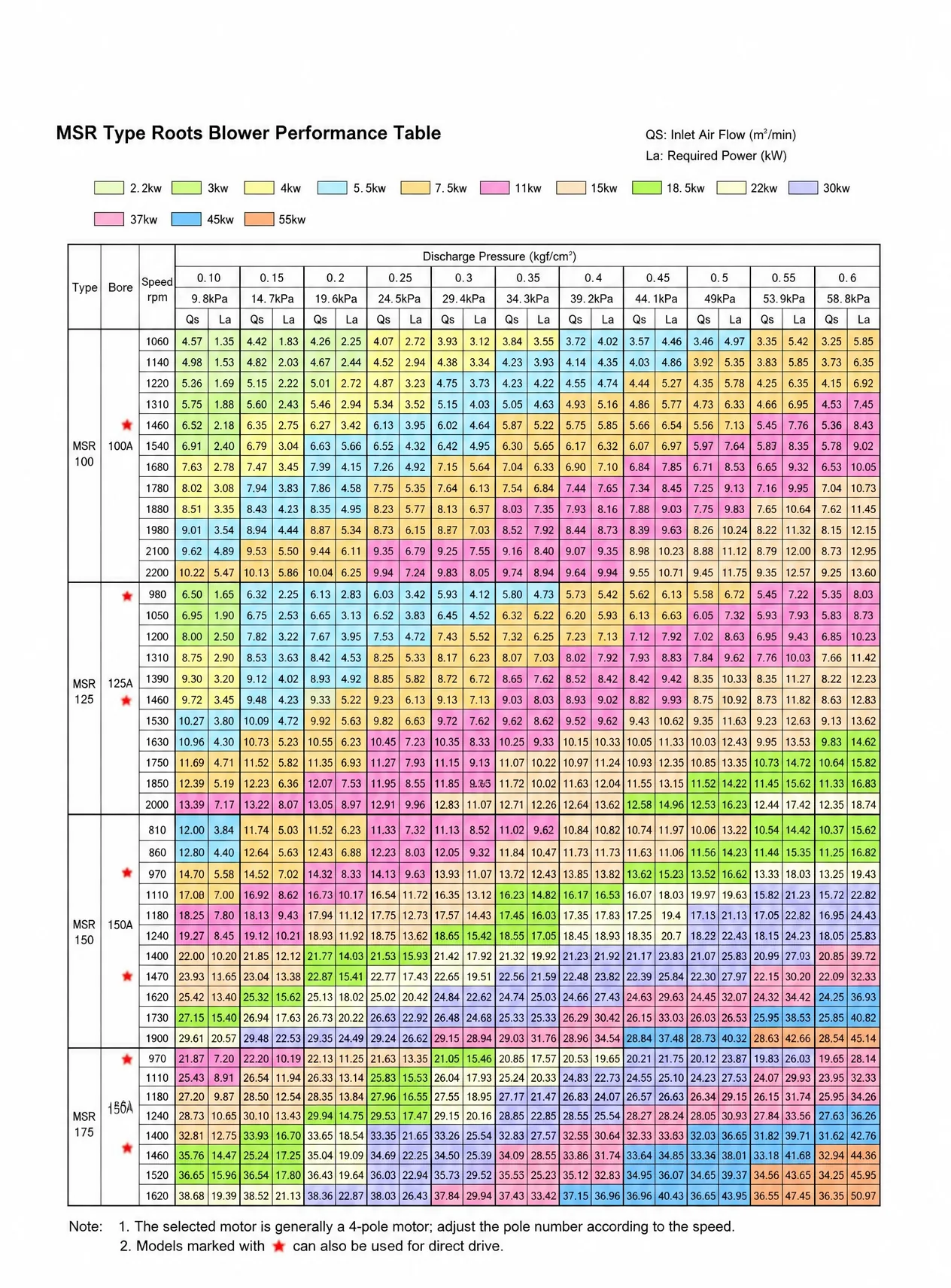

MSR series Roots blower performance table — models 100 to 175

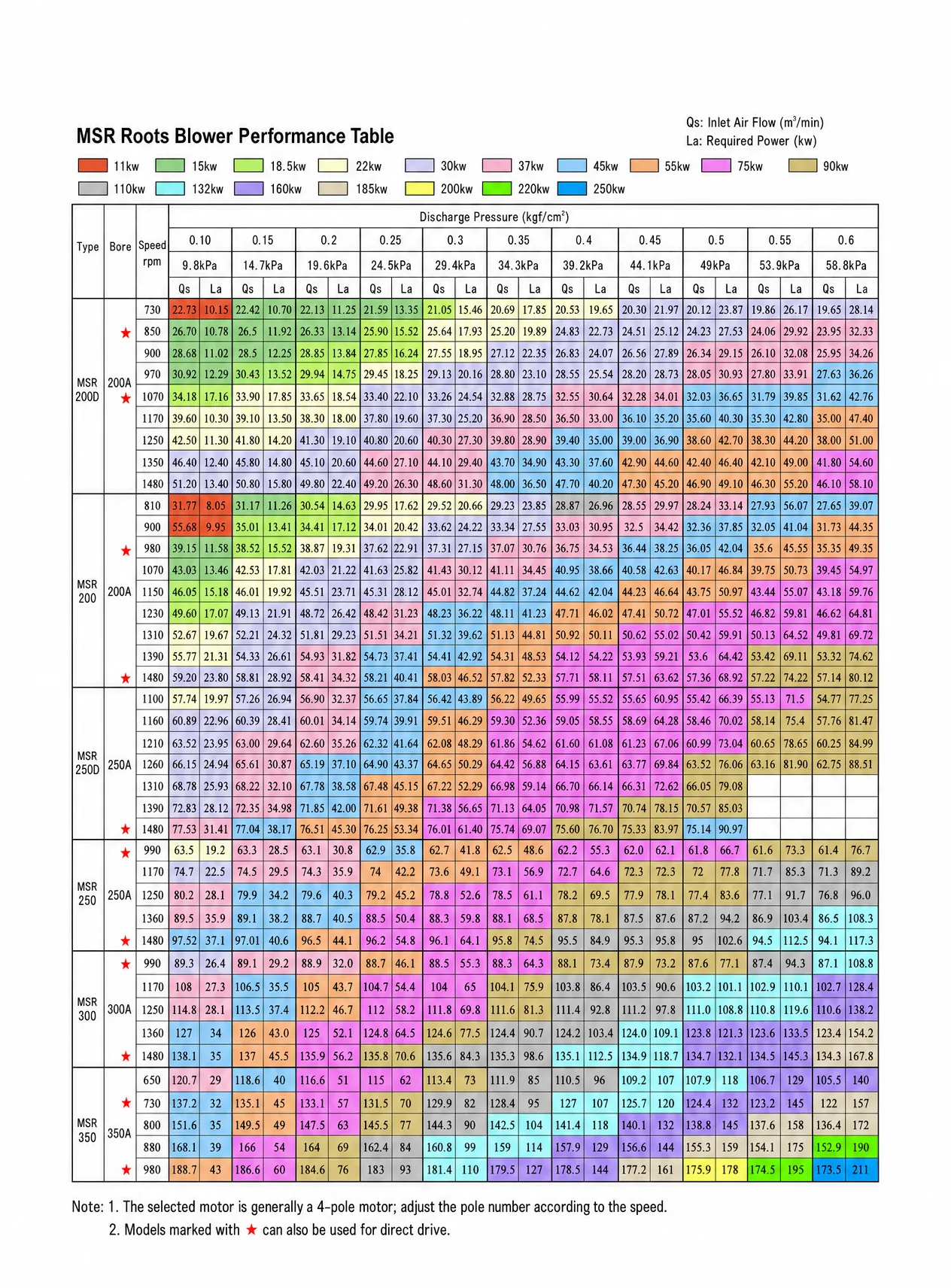

MSR series Roots blower performance table — models 200 to 350

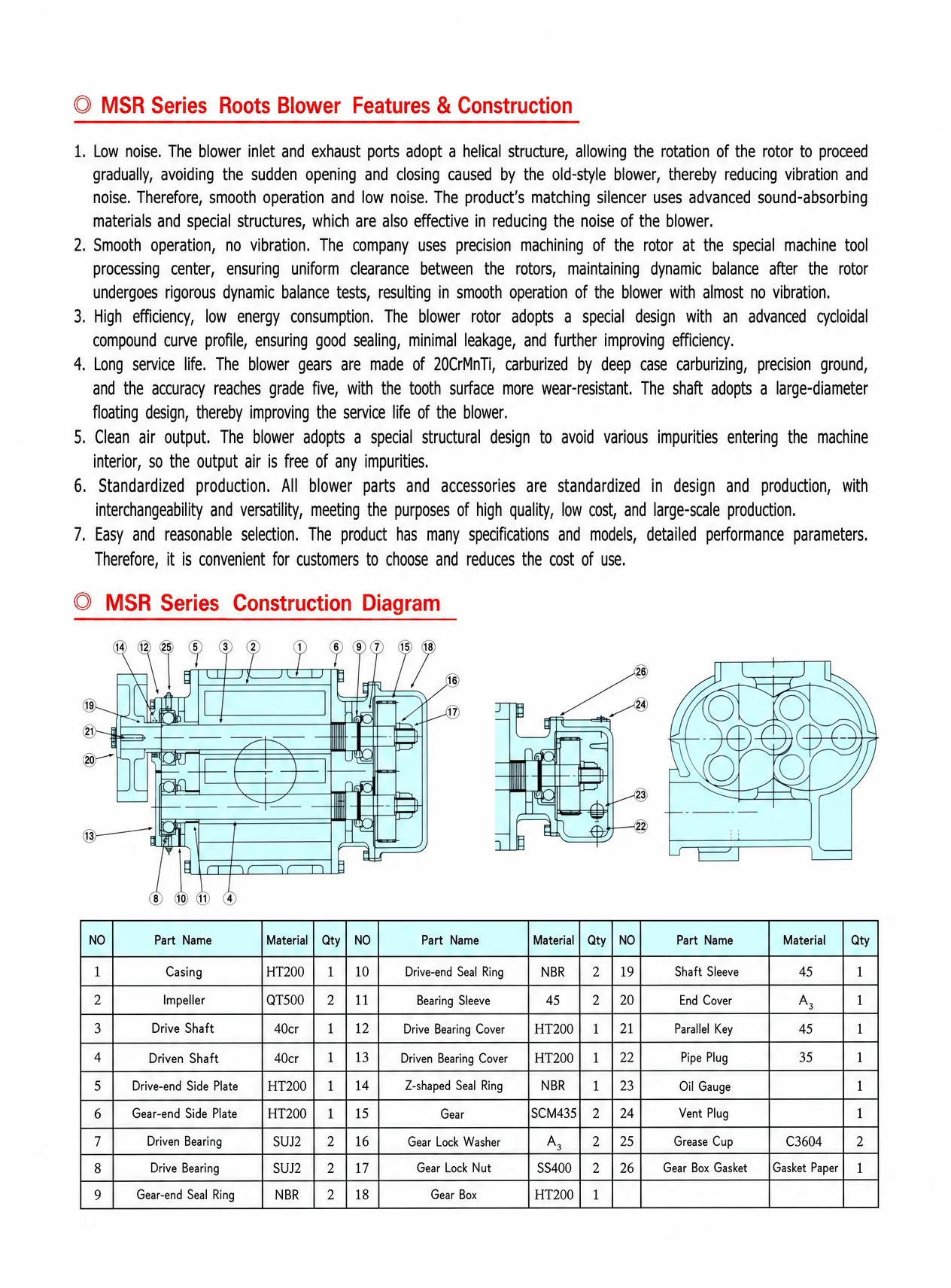

MSR series Roots blower features, construction diagram and parts list

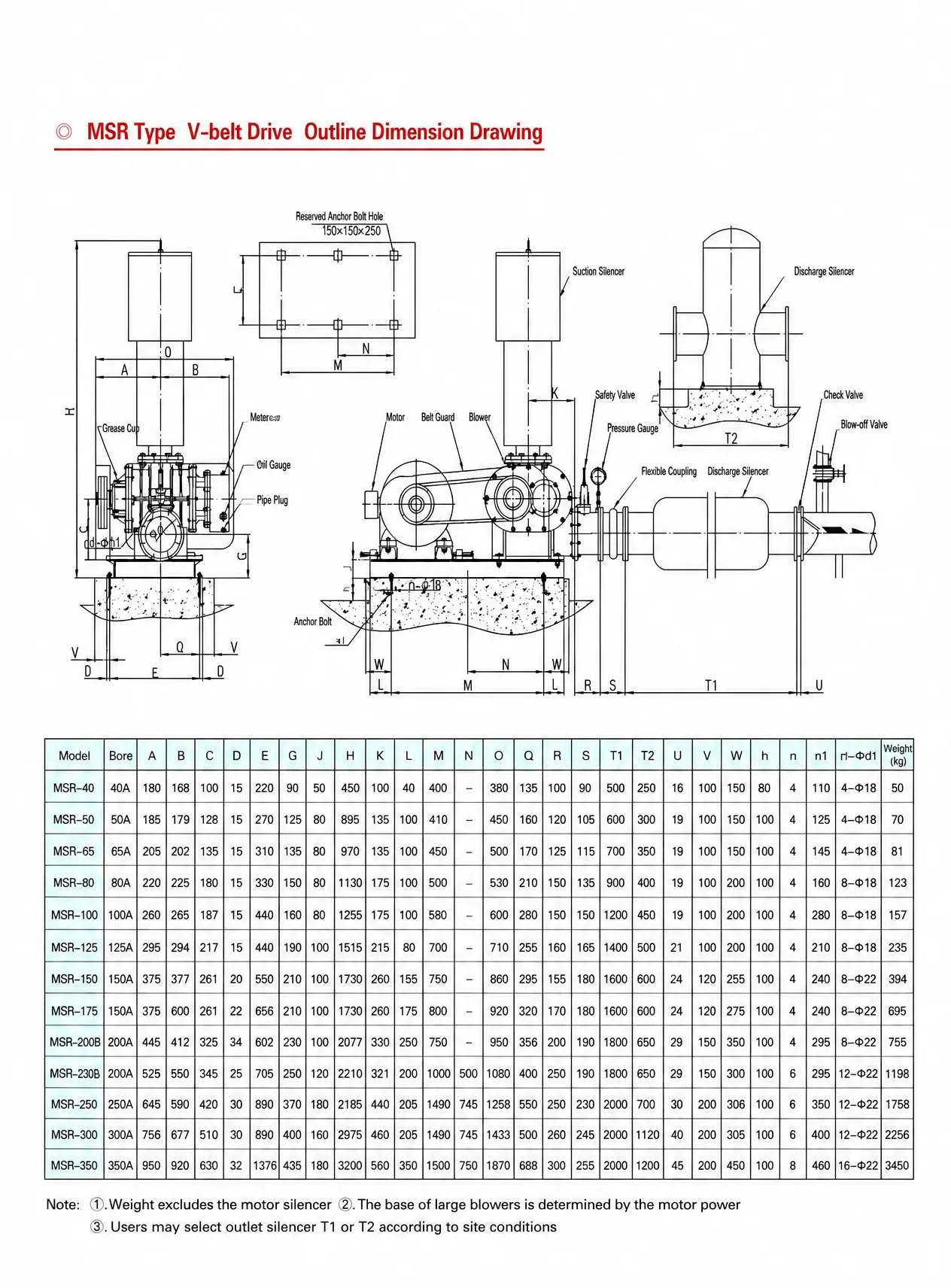

MSR series Roots blower outline dimension drawing (V-belt drive)

Type	Positive-displacement Roots blower (three-lobe)
Gas purity	Oil-free — no contamination of aeration air
Duty	Continuous long-run operation
Noise / vibration	Low pulsation, low vibration
Use cases	Aquaculture aeration, sewage aeration, pneumatic conveying, vacuum
